Series: XAV 2000-5000 Series Slow Staet Valve

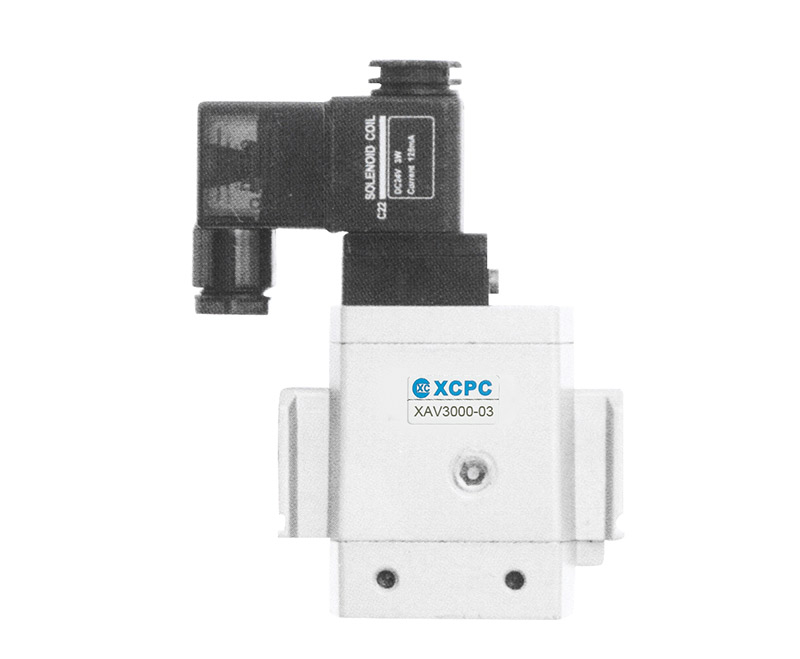

XAV 2000-5000 Series Slow Staet Valve

Feature

Applicable Pressure Range	0.3~1.0MPa
Ambientand Fluid Temperature	0~60℃
Coil voltage rating	DC24V、12V、AC220、110V
Coil insulation class	B level or the same level
DC/Consumed power DC	3W

Send Inquiry

Ordering Code

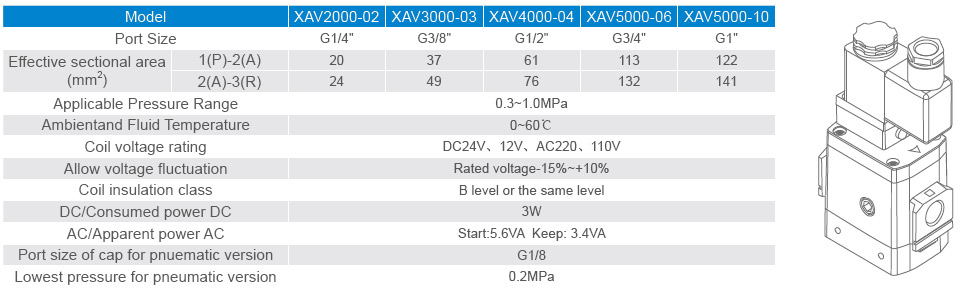

Specification

This is a differential balanced valve automatically opens the air port fully when the downstream pressure iss anout 50% of the upstream pressure.Without a pilot,the upstream air flows downstream through the regulation needle.When an external or pneumatic solenoid signal is generated,the valve opens the main port create full flow.It doesn't relieve the downstream circuit.
