 Working Medium
|
Air,Water,Oil,Gas
|
|
Motion Pattern
|
Direct Drive Type
|
|
Type
|
Normal Close Type
|
|
Operation Fluid Viscosity
|
20 CST(Below)
|
|
Max. Pressure Resistance MPa
|
1.0
|
|
Operating Temperature ℃
|
-5 ~ 80℃
|
|

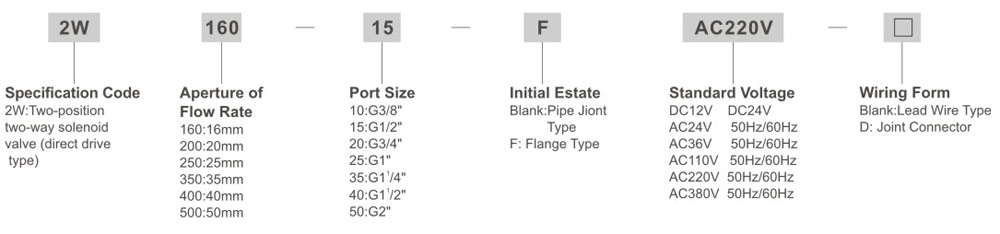

Model
|
2W160-10
|
2W160-15
|
2W200-20
|
2W250-25
|
2W350-35
|
2W400-40
|
2W500-50
|
|
Working Medium
|
Air,Water,Oil,Gas
|
||||||
|
Motion Pattern
|
Direct Drive Type
|
||||||
|
Type
|
Normal Close Type
|
||||||
|
Aperture of Flow Rate(mm)
|
16
|
20
|
25
|
35
|
40
|
50
|
|
|
CV Value
|
4.8
|
7.6
|
12
|
24
|
29
|
48
|
|
|
Joint Pipe Bore
|
3/8″
|
1/2″
|
3/4″
|
1″
|
1 1/4″
|
1 1/2″
|
2″
|
|
Operation Fluid Viscosity
|
20 CST(Below)
|
||||||
|
Working-pressure MPa
|
Air：0~0.7MPa; Water：0~0.5MPa; Oil：0~0.5MPa
|
||||||
|
Max. Pressure Resistance MPa
|
1.0
|
||||||
|
Operating Temperature ℃
|
-5 ~ 80℃
|
||||||
|
Voltage Range
|
±10%
|
||||||
|
Material of Body
|
Brass (Material of stainless steel need special explain)
|
||||||
|
Material of Oil Seal
|
NBR,EPDM or VITON
|
||||||
|

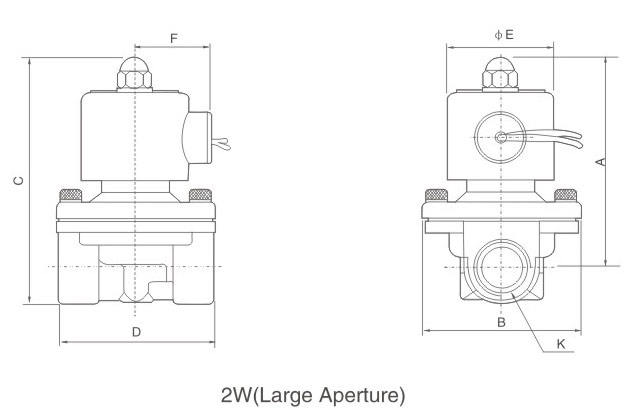

Symbol/Model
|
A
|
B
|
C
|
D
|
E
|
F
|
K
|
|
2W160-10
|
101.5
|
57
|
117
|
67
|
50
|
36
|
G3/8″
|
|
2W160-15
|
101.5
|
57
|
117
|
67
|
50
|
36
|
G1/2″
|
|
2W200-20
|
107
|
57
|
123.5
|
72
|
50
|
36
|
G3/4″
|
|
2W250-25
|
111.5
|
73.5
|
134.5
|
92
|
50
|
36
|
G1″
|
|
2W350-35
|
142
|
95
|
172
|
125
|
70.5
|
56
|
G1 1/4″
|
|
2W400-40
|
142
|
95
|
172
|
125
|
70.5
|
56
|
G1 1/2″
|
|
2W500-50
|
172
|
123
|
209
|
168
|
70.5
|
56
|
G2"
|
|

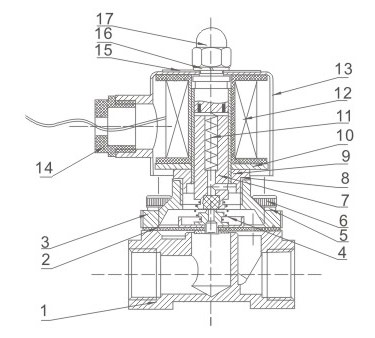

NO
|
Name
|
|
1
|
Body Of Valve
|
|
2
|
Assembly Of Diaphragm
|
|
3
|
Valve Cover
|
|
4
|
Pull Spring
|
|
5
|
Gasket
|
|
6
|
Socket Hexagon Screws
|
|
7
|
Assembly Of Iron Core
|
|
8
|
Seal Gasket
|
|
9
|
Assembly Of Iron Core
|
|
NO
|
Name
|
|
10
|
Magentic Plate
|
|
11
|
Spring
|
|
12
|
Assembly Of Iron Core
|
|
13
|
Iron Cover
|
|
14
|
Cord-Locks
|
|
15
|
Name Plate
|
|
16
|
Gasket
|
|
17
|
Head Cover Nut
|
