 Highest Working Pressure
|
1.0MPa
|
|||||||
|
Ensured pressure Resistance
|
1.5MPa
|
|||||||
|
Operating Temperature Range
|
5-60℃
|
|||||||
|
Recommended Oil Use
|
ISO VG 32
|
|||||||
|
Container Material
|
Polycarbonate
|
|||||||
| Model |
XAL1000-M5 |
XAL2000-01 |
XAL2000-02 |
XAL3000-02 |
XAL3000-03 |
XAL4000-03 |
XAL4000-04 | XAL4000-06 | XAL5000-06 | XAL5000-10 |
| Rated Flow |
95 |
800 | 800 | 1700 | 1700 | 5000 | 5000 | 6300 | 7000 | 9000 |
| Port Size | M5 | G1/8" | G1/4" | G1/4" | G3/8" | G3/8" | G1/2" | G3/4" | G3/4" | G1" |
| Highest Working Pressure | 1.0MPa | |||||||||
| Ensured pressure Resistance | 1.5MPa | |||||||||
| Operating Temperature Range | 5-60℃ | |||||||||
| Recommended Oil Use | ISO VG 32 | |||||||||
| Container Material | Polycarbonate | |||||||||
| Protective Cover | Not Available | Available | ||||||||
|

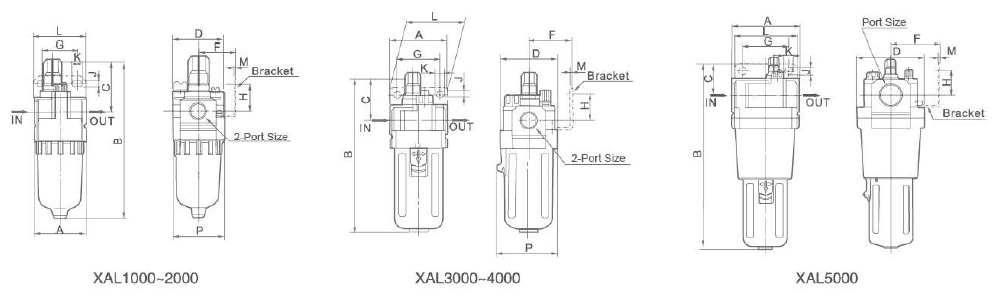

Model |
Port Size(G) |
A |
B |
C |
D |
F |
G |
H |
J |
K |
L |
M |
P |
|
XAL1000 |
M5 |
25 |
81.5 |
25.5 |
25 |
- |
- |
- |
- |
- |
- |
- |
27 |
|
XAL2000 |
G1/8"-G1/4" |
40 |
125.5 |
38 |
40 |
30 |
27 |
22 |
5.4 |
8.4 |
40 |
23 |
40 |
|
XAL3000 |
G1/4"-G3/8" |
53 |
150 |
38 |
53 |
41 |
40 |
23 |
6.5 |
8 |
53 |
2.3 |
56 |
|
XAL4000 |
G3/8"-1/2" |
70 |
185 |
41 |
70 |
50 |
54 |
26 |
8.5 |
10.5 |
70 |
2.3 |
73 |
|
XAL4000-06 |
G3-4" |
75 |
185 |
39 |
70 |
50 |
54 |
25 |
8.5 |
10.5 |
70 |
2.3 |
73 |
|
XAL5000 |
G3/4"-G1" |
90 |
360 |
45 |
90 |
66.5 |
66 |
35 |
11 |
13 |
90 |
3.2 |
90 |
