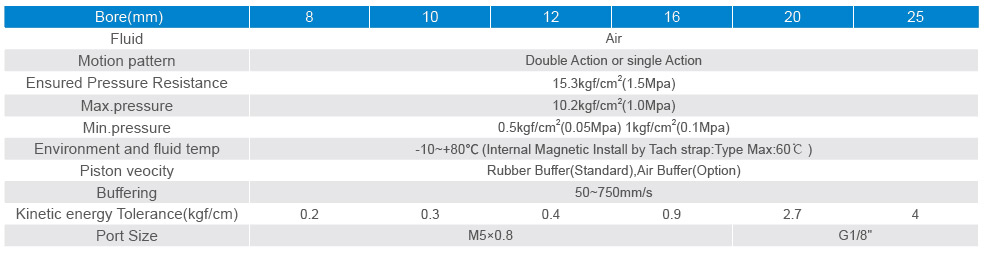

 Working Medium:
|
Air |
|
Motion Pattern:
|
Double Action or single Action |
|
Ensured Pressure Resistance:
|
1.5Mpa |
|
Max.pressure:
|
1.0Mpa |
|
Min.pressure:
|
0.05Mpa/0.1Mpa |
|
Buffering:
|
50~750mm/s |
|

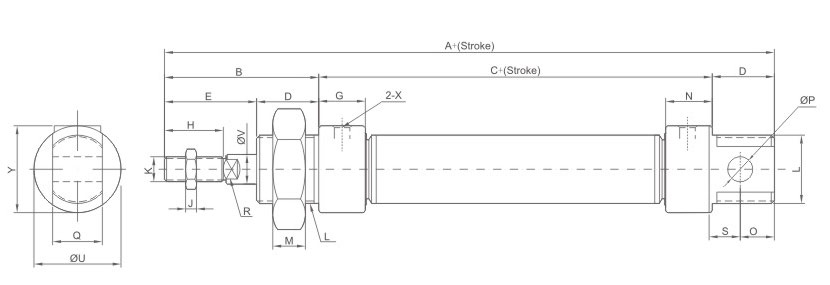

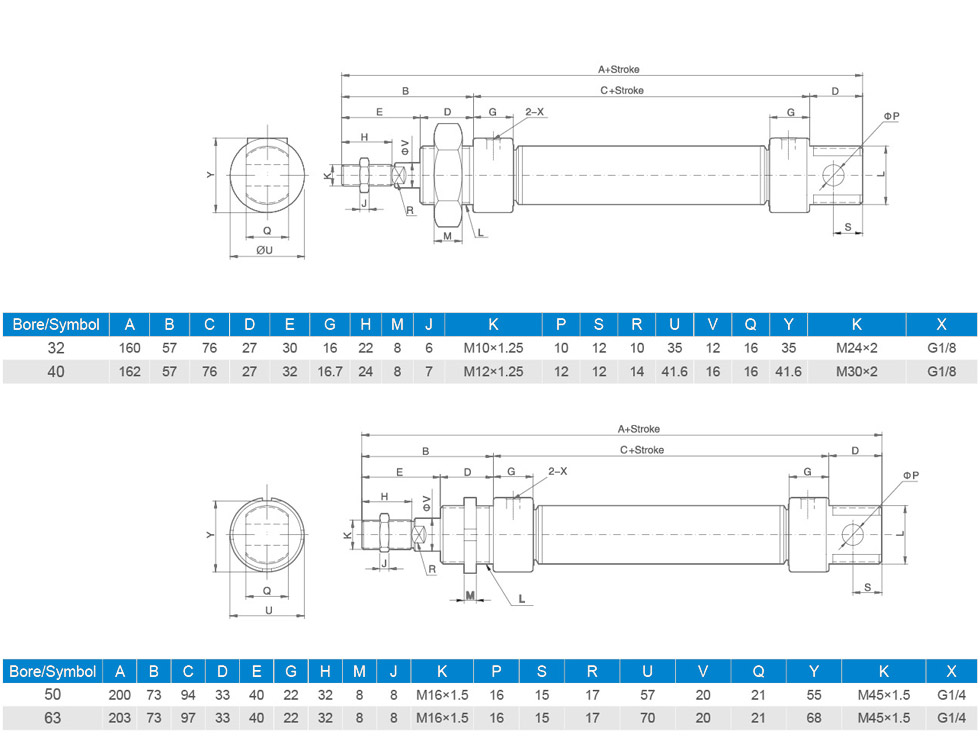

Bore/Symbol |
A |
B |
C |
D |
E |
G |
H |
M |
J |
O |
K |
N |
P |
S |
R |
U |
V |
Q |
Y |
L |
X |
|
8 |
86 |
28 |
46 |
12 |
16 |
9 |
12 |
7 |
3 |
10 |
M4×0.7 |
9 |
4 |
6 |
- |
15 |
4 |
8 |
15 |
M12×1.25 |
M5 |
|
10 |
86 |
27 |
47 |
12 |
15 |
9 |
12 |
7 |
3 |
10 |
M4×0.7 |
9 |
4 |
6 |
- |
15 |
4 |
8 |
15 |
M12×1.25 |
M5 |
|
12 |
105 |
37 |
51 |
17 |
20 |
9 |
16 |
6 |
4.5 |
14 |
M6x1 |
9 |
6 |
9 |
5 |
20 |
6 |
12 |
20 |
M16x1.5 |
M5 |
|
16 |
111 |
38 |
56 |
17 |
21 |
12.5 |
16 |
6 |
4.5 |
13 |
M6x1 |
10.5 |
6 |
9 |
5 |
20 |
6 |
12 |
20 |
M16x1.5 |
M5 |
|
20 |
128 |
45 |
63 |
20 |
25 |
15 |
20 |
8 |
6 |
11 |
M8×1.25 |
15 |
8 |
12 |
6 |
27 |
8 |
16 |
27 |
M22×1.5 |
G1/8" |
|
25 |
137 |
50 |
65 |
22 |
28 |
15 |
22 |
8 |
6 |
11 |
M10×1.25 |
15 |
8 |
12 |
8 |
27 |
10 |
16 |
27 |
M22×1.5 |
G1/8" |

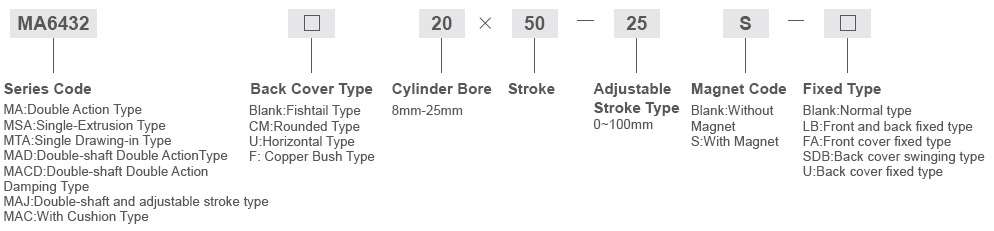

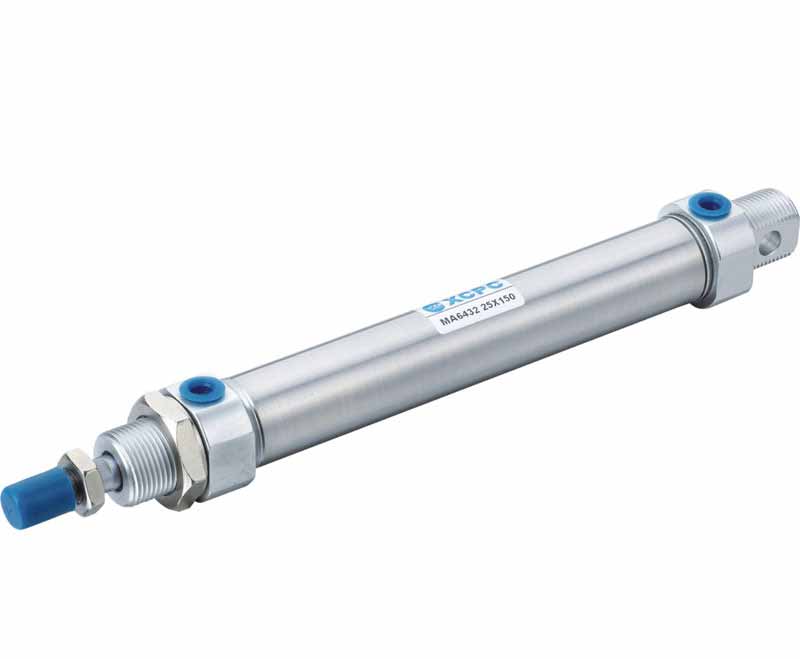

MA6432-N25X150
|

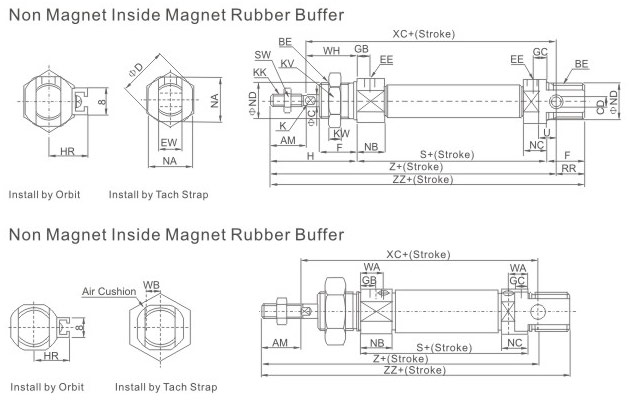

Bore |
AM |
BE |
ΦC |
ΦCD |
ΦD |
EE |
EW |
F |
|
φ8 |
12 |
M12×1.25 |
4 |
4 |
17 |
M5×0.8 |
8 |
12 |
|
φ10 |
12 |
M16×1.25 |
4 |
4 |
17 |
M5×0.8 |
8 |
12 |
|
φ12 |
16 |
M16×1.5 |
6 |
6 |
20 |
M5×0.8 |
12 |
17 |
|
φ16 |
16 |
M16×1.5 |
6 |
6 |
20 |
M5×0.8 |
12 |
17 |
|
φ20 |
20 |
M22×1.5 |
8 |
8 |
28 |
G1/8" |
16 |
20 |
|
φ25 |
22 |
M22×1.5 |
8 |
8 |
33.5 |
G1/8" |
16 |
22 |
MA6432(ISO 6432 Big Bore)
|
|
|
