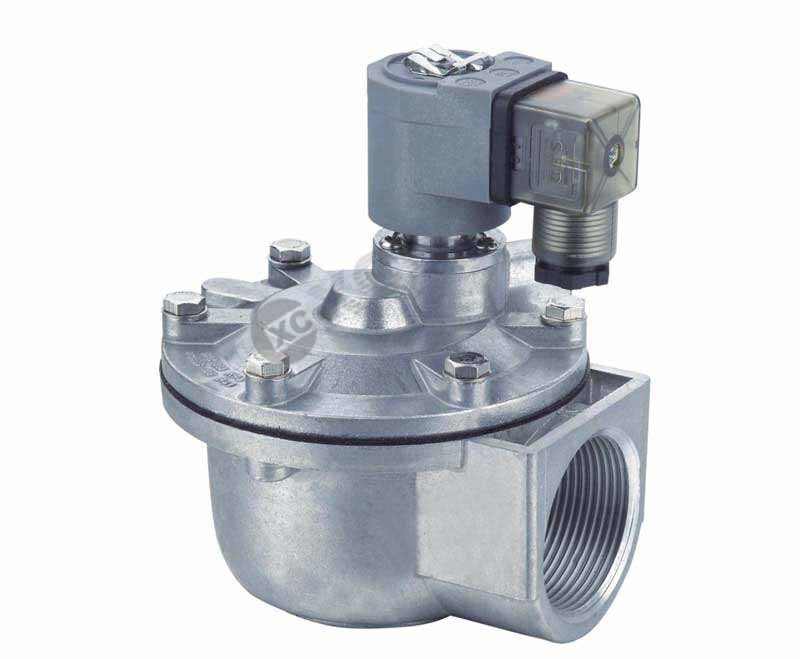

XMFZ Right Angle Pulse Valve
SERIES: XMFZ Right Angle Pulse Valve
XMFZ Right Angle Pulse Valve
FEATURES
 Working Pressure
|
0.3~0.8MPa
|
|
Ambient Temperature
|
-5~55℃
|
|
Relatively Humidity
|
＜85%
|
|
Working Medium
|
Clean Air
|
|
VoItage
|
AC110V/AC220V/DC24V
|
|
Diaphragm Life Cycles
|
Over 1000k Cycles
|

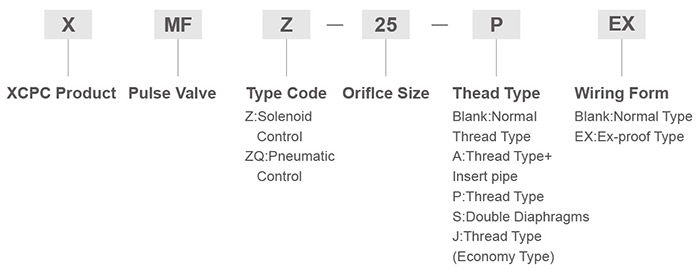

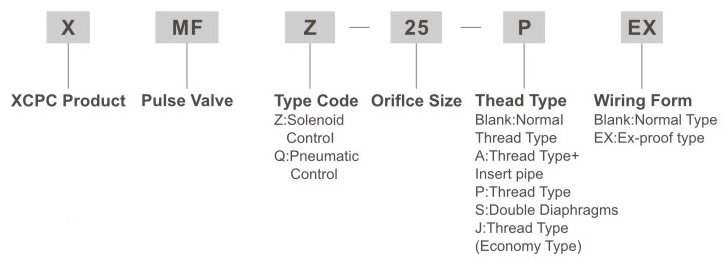

Ordering Code
Specification
|
Model
|
XMF-Z-20A
|
XMF-Z-20P
|
XMF-Z-20
|
XMF-Z-25
|
XMF-Z-25P
|
XMF-Z-35P
|
XMF-Z-40S
|
XMF-Z-50S
|
XMF-Z-62S
|
XMF-Z-76S
|
XMF-Z-100S
|
|
Working Pressure
|
0.3~0.8MPa
|
||||||||||
|
Ambient Temperature
|
-5~55℃
|
||||||||||
|
Relatively Humidity
|
＜85%
|
||||||||||
|
Working Medium
|
Clean Air
|
||||||||||
|
VoItage
|
AC110V/AC220V/DC24V
|
||||||||||
|
Diaphragm Life Cycles
|
Over 1000k Cycles
|
||||||||||
|
Orifice(mm)
|
φ20
|
φ20
|
φ20
|
φ25
|
φ25
|
φ35
|
φ40
|
φ50
|
φ62
|
φ76
|
φ100
|
|
Connection Port
|
G3/4"
|
G3/4"
|
G3/4"
|
G1"
|
G1"
|
G1 1/2"
|
G1 1/2"
|
G2"
|
G1 1/2"
|
G3"
|
φ100
|

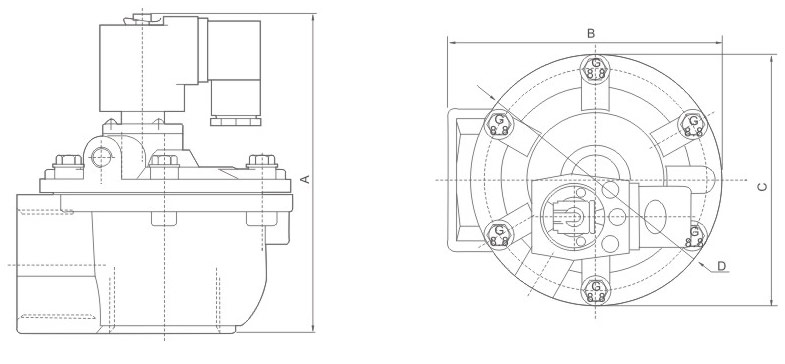

Overall Dimensions
|
Model
|
XMF-Z-20A
|
XMF-Z-20P
|
XMF-Z-20
|
XMF-Z-25
|
XMF-Z-25P
|
XMF-Z-35P
|
XMF-Z-40S
|
XMF-Z-50S
|
XMF-Z-62S
|
XMF-Z-76S
|
XMF-Z-100S
|
|
A
|
173
|
124
|
110
|
110
|
124
|
142
|
166
|
202
|
222
|
245
|
356.5
|
|
B
|
145
|
105
|
90.5
|
90.5
|
105
|
121
|
132
|
210
|
210
|
230.5
|
286.5
|
|
C
|
-
|
82.5
|
75
|
75
|
82.5
|
-
|
-
|
-
|
-
|
-
|
-
|
|
D
|
φ90
|
-
|
-
|
-
|
-
|
φ112
|
φ137
|
φ185
|
φ185
|
φ200
|
φ221
|
