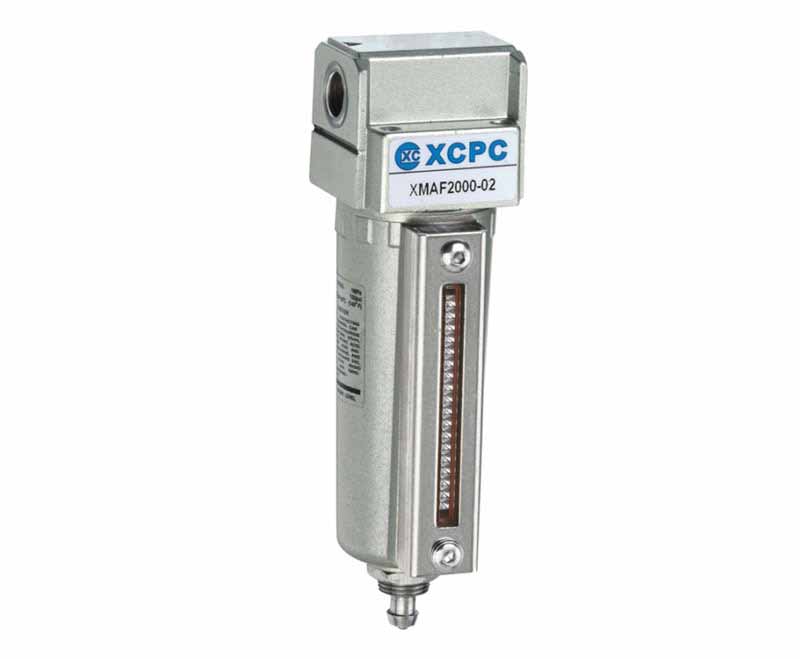

XMAF(Air filter)
SERIES: XMA Series Metal cup F.R.L
XMAF(Air filter)
FEATURES
 Ensured Pressure Resistance
|
1.5MPa(15kgf/cm2) |
|
Highest Working Pressure
|
1.0MPa(10kgf/cm2)
|
|
Operating Temperature Range
|
5-60℃
|
|
Filter Precisio
|
25µ & 5µ & 50µ
|
|
Container Material
|
Aluminum Die Casting
|
SUB-SERIES

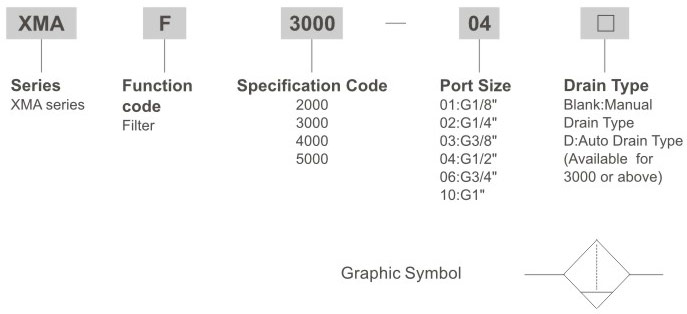

Ordering Code
Specification
| Model |
XMAF2000-01 |
XMAF2000-02 |
XMAF3000-02 |
XMAF3000-03 |
XMAF4000-03 |
XMAF4000-04 |
XMAF4000-06 | XMAF5000-06 | XMAF5000-10 |
| Ensured Pressure Resistance |
1.5MPa(15kgf/cm2) |
||||||||
| Highest Working Pressure | 1.0MPa(10kgf/cm2) | ||||||||
| Operating Temperature Range | 5-60℃ | ||||||||
| Filter Precisio | 25µ & 5µ & 50µ | ||||||||
| Container Material | Aluminum Die Casting | ||||||||
| Rated Flow(L/min) | 750 | 1500 | 4000 | 6000 | 7000 | ||||
| Port Size(G) | 1/8" | 1/4" | 1/4" | 3/8" | 3/8" | 1/2" | 3/4" | 3/4" | 1" |
| Bowl Capacity | 15 | 20 | 45 | 45 | 130 | ||||

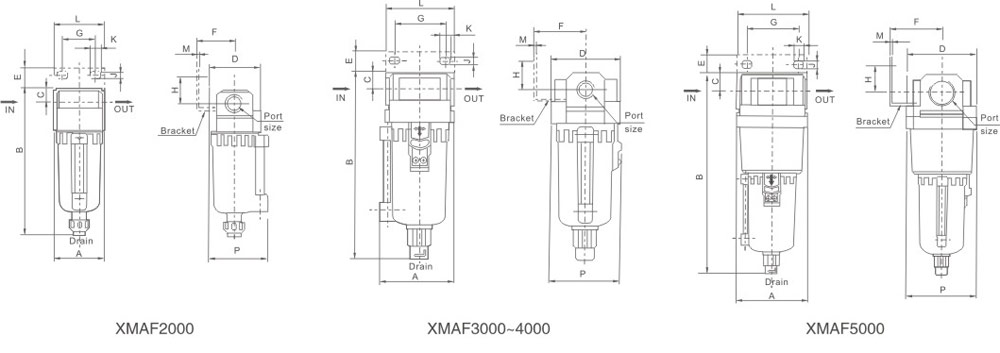

Overall Dimensions
|
Model
|
Port Size(G)
|
A
|
B
|
C
|
D
|
F
|
G
|
H
|
J
|
K
|
L
|
M
|
P
|
|
XMAF2000
|
G1/8"-G1/4"
|
40
|
119.5
|
11
|
40
|
17
|
27
|
22
|
5.4
|
8.4
|
40
|
2.3
|
46
|
|
XMAF3000
|
G1/4"-G3/8"
|
57.5
|
154
|
14
|
53
|
16
|
40
|
23
|
6.5
|
8
|
53
|
2.3
|
55
|
|
XMAF4000
|
G1/2"
|
74
|
184
|
18
|
70
|
17
|
54
|
26
|
8.5
|
10.5
|
70
|
2.3
|
72.5
|
|
XMAF4000-06
|
G3/4"
|
76.5
|
188
|
20
|
70
|
14
|
54
|
25
|
8.5
|
10.5
|
70
|
2.3
|
72.5
|
|
XMAF5000
|
G3/4"-G1"
|
90
|
263
|
24
|
90
|
23
|
66
|
35
|
11
|
13
|
70
|
3.2
|
90
|
