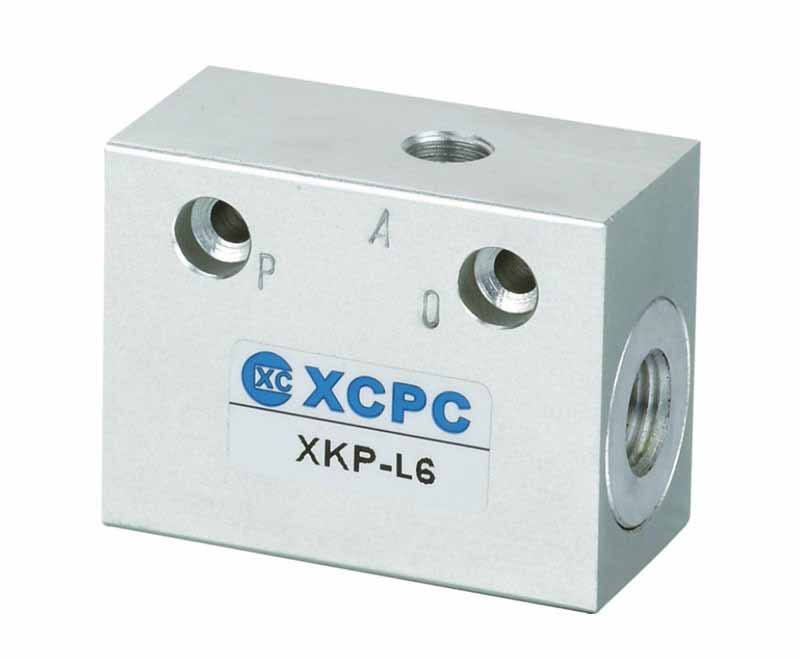

XKP Series Quick Exhaust Valve
SERIES: XKP Series Quick Exhaust Valve
XKP Series Quick Exhaust Valve
FEATURES
 Working Medium
|
Compress Air
|
|
Operating Temperature Range
|
-5~+60℃
|
|
Working-pressure
|
0.05~1.2MPa
|
Ordering Code
Specification
|
Model
|
XKP-L6
|
XKP-L8
|
XKP-L10
|
XKP-L15
|
XKP-L20
|
XKP-L25
|
XKP-L32
|
XKP-L40
|
XKP-L50
|
|
|
Section Area
|
P→A
|
10
|
20
|
40
|
60
|
110
|
190
|
300
|
400
|
650
|
|
A→□
|
20
|
40
|
60
|
110
|
190
|
300
|
400
|
650
|
900
|
|
|
Leak Out Flow(cm3/min)
|
≤10
|
≤25
|
≤50
|
≥70
|
||||||
|
Working Medium
|
Compress Air
|
|||||||||
|
Operating Temperature Range
|
-5~+60℃
|
|||||||||
|
Working-pressure
|
0.05~1.2MPa
|
|||||||||

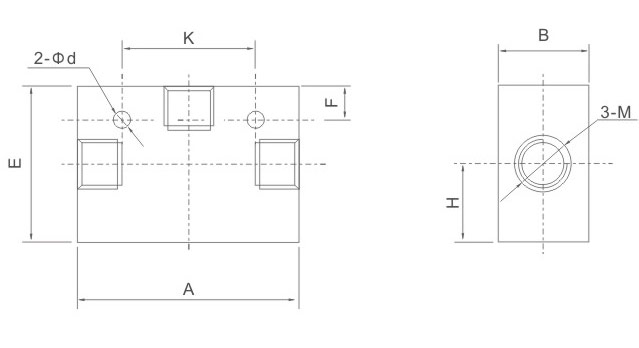

Overall Dimensions
|
Model/Symbol
|
M
|
A
|
K
|
B
|
E
|
H
|
F
|
d
|
|
XKP-L6
|
G1/8
|
75
|
-
|
36
|
41
|
10
|
-
|
-
|
|
XKP-L8
|
G1/4
|
|||||||
|
XKP-L10
|
G3/8
|
82
|
58
|
44
|
60
|
23
|
8
|
7
|
|
XKP-L15
|
G1/2
|
|||||||
|
XKP-L20
|
G3/4
|
128
|
98
|
72
|
95
|
36
|
8
|
10
|
|
XKP-L25
|
G1
|
|||||||
|
XKP-L32
|
G1 1/4
|
158
|
126
|
88
|
112
|
44
|
10
|
10
|
|
XKP-L40
|
G1 1/2
|
|||||||
|
XKP-L50
|
G2
|
190
|
148
|
102
|
130
|
52
|
10
|
12
|
