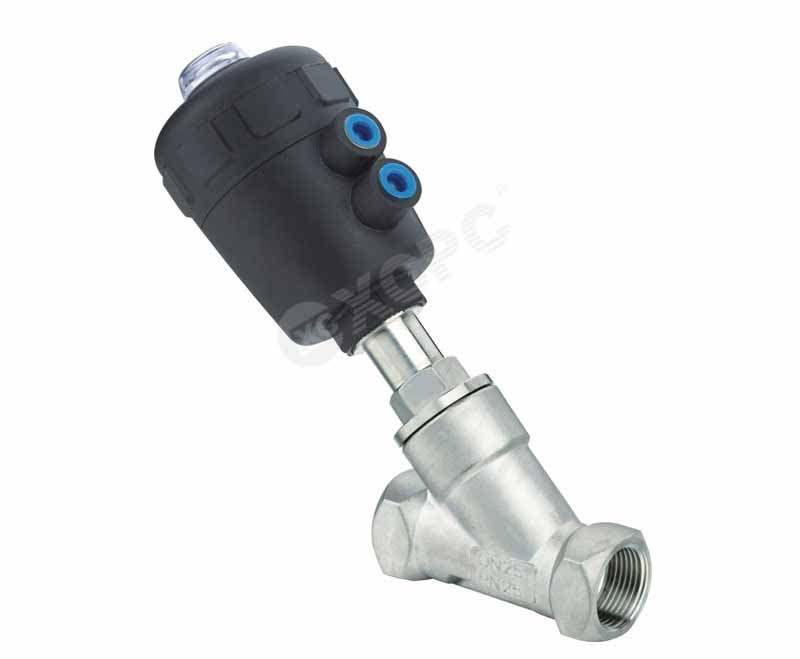

XCP Series Plastic Actuator Bevel Valve
SERIES: XCP Series Plastic Actuator Bevel Valve
XCP Series Plastic Actuator Bevel Valve
FEATURES
 Port Size
|
G3/8” ~G3”
|
|
KV Value(M3/h)
|
3.7~135
|
|
Actuator
|
40~100
|
|
Medium Temperature
|
-10~+180℃
|
|
Flow Direction
|
A(Flow Direction Below The Seat)or B(Flow Direction above the seat)
|
Ordering Code
Specification
|
Orifice Size
|
15
|
20
|
25
|
32
|
40
|
50
|
|
Port size
|
G1/2"
|
G3/4"
|
G1"
|
G1-1/4"
|
G1-1/2"
|
G2"
|
|
KV Value(m3/h)
|
4.2
|
8
|
19
|
27.5
|
42
|
55
|
|
Max.Working Pressure(Mpa)
|
0~1.6
|
0~1.1
|
0~1.1
|
0~1.5
|
0~1.25
|
0~1.0
|
|
Min.Pilot Pressure(Mpa)
|
0.39
|
0.39
|
0.42
|
0.5
|
0.44
|
0.4
|
|
Polyamide
|
50
|
50
|
63
|
63
|
63
|
80
|
|
Medium Temperature
|
-10~+180℃
|
|||||
|
Flow Direction
|
A(Flow Direction Below The Seat) or B(Flow Direction above The Seat)
|
|||||

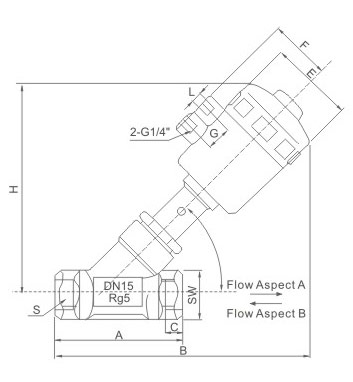

Overall Dimensions
|
Orifice Size(mm)
|
Port size
|
Actuator Size( mm)
|
A
|
B
|
C
|
φE
|
F
|
H
|
S
|
SW
|
G
|
L
|
|
10
|
G3/8"
|
40
|
65
|
142
|
12
|
53
|
30
|
85
|
G3/8"
|
25
|
20
|
G1/8"
|
|
15
|
G1/2"
|
50
|
76
|
168
|
14
|
64
|
44
|
115
|
G1/2"
|
28
|
24
|
G1/4"
|
|
20
|
G3/4"
|
50
|
92
|
175
|
16
|
64
|
44
|
131
|
G3/4"
|
32
|
24
|
G1/4"
|
|
25
|
G1"
|
63
|
103
|
218
|
21
|
80
|
54
|
166
|
G1"
|
39
|
24
|
G1/4"
|
|
32
|
G1-1/4"
|
63
|
112
|
228
|
19
|
80
|
54
|
172
|
G1-1/4"
|
49
|
24
|
G1/4"
|
|
40
|
G1-1/2"
|
63
|
129
|
232
|
21
|
80
|
54
|
174
|
G1-1/2"
|
56
|
24
|
G1/4"
|
|
50
|
G2"
|
80
|
143
|
263
|
27
|
100
|
62
|
202
|
G2"
|
68
|
24
|
G1/4"
|
|
65
|
G2-1/2"
|
80
|
186
|
280
|
28
|
100
|
62
|
209
|
G2-1/2"
|
84
|
24
|
G1/4"
|
|
80
|
G3"
|
100
|
218
|
355
|
34
|
125
|
71
|
268
|
G3"
|
101
|
30
|
G1/4"
|
