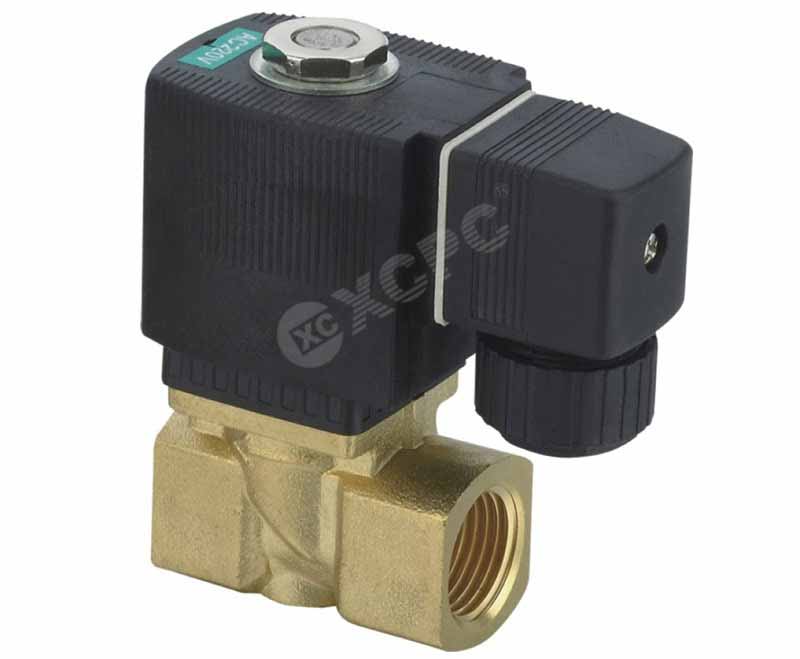

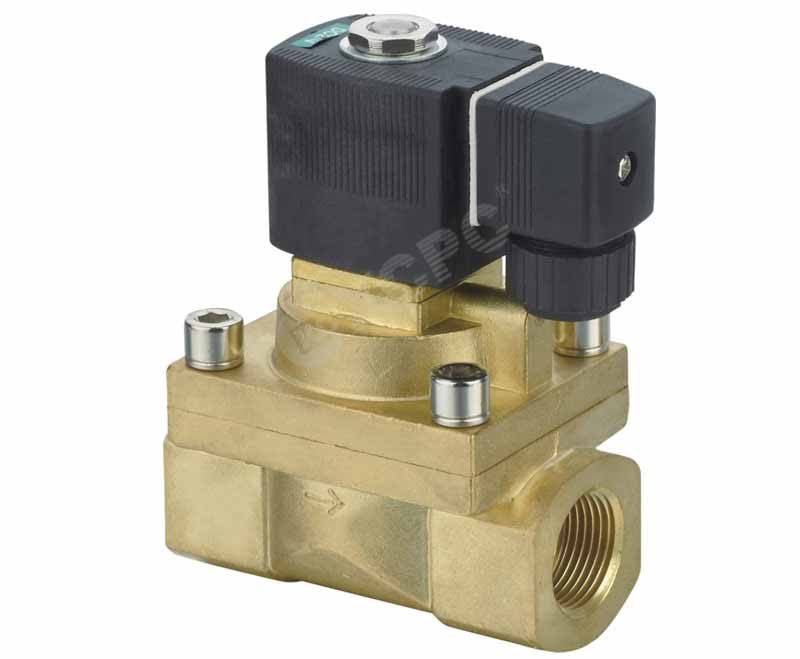

XC6213 Diaphragm Type Solenoid Valve
SERIES: XC6213 Diaphragm Type Solenoid Valve
XC6213 Diaphragm Type Solenoid Valve
FEATURES
 Working Pressure(MPa)
|
0.03~1.0
|
|
Environment Temperature
|
-10~+55
|
|
Medium Temperature
|
-10~+90
|
|
PowerVoltage
|
AC:50Hz24V,36V,110V,220V, DC:24V,12V
|
Ordering Code
Specification
|
Model
|
XC6213-02
|
XC6213-03
|
XC6213-04
|
XC6213-04
|
XC6213-06
|
XC6213-06
|
XC6213-08
|
|
|
Inside nominal diameter(mm)
|
10
|
14
|
25
|
|||||
|
Port Size
|
G1/4"
|
G3/8"
|
G1/2"
|
G1/2"
|
G3/4"
|
G3/4"
|
G1"
|
|
|
Working Pressure(MPa)
|
0.03~1.0
|
|||||||
|
Environment Temperature
|
-10~+55
|
|||||||
|
Medium Temperature
|
-10~+90
|
|||||||
|
Kv Value(m3 /h)
|
2
|
3.6
|
8.3
|
8.3
|
11
|
11
|
||
|
Power Consumptin
|
AC(VA)
|
14
|
||||||
|
DC(W)
|
8
|
|||||||
|
Change Frequency(Hz)
|
≥1
|
≥0.5
|
||||||
|
PowerVoltage
|
AC:50Hz24V,36V,110V,220V, DC:24V,12V
|
|||||||

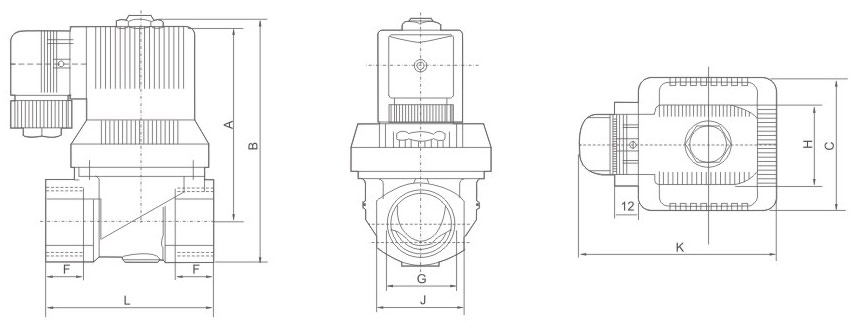

Overall Dimensions
|
Model
|
G
|
C
|
F
|
L
|
J
|
A
|
B
|
H
|
K
|
|
XC6213-02
|
G1/4"
|
38
|
14
|
50
|
26
|
71
|
85
|
35
|
71
|
|
XC6213-03
|
G3/8"
|
38
|
14
|
50
|
26
|
71
|
85
|
35
|
71
|
|
XC6213-04
|
G1/2"
|
38
|
14
|
50
|
26
|
71
|
85
|
35
|
71
|
|
XC6213-04
|
G1/2"
|
45
|
16
|
58
|
31
|
82
|
96
|
35
|
80
|
|
XC6213-06
|
G3/4"
|
45
|
16
|
58
|
31
|
82
|
96
|
35
|
80
|
|
XC6213-06
|
G3/4"
|
65
|
18
|
82
|
41
|
96
|
117
|
35
|
90
|
|
XC6213-08
|
G1
|
65
|
18
|
82
|
41
|
96
|
117
|
35
|
90
|
