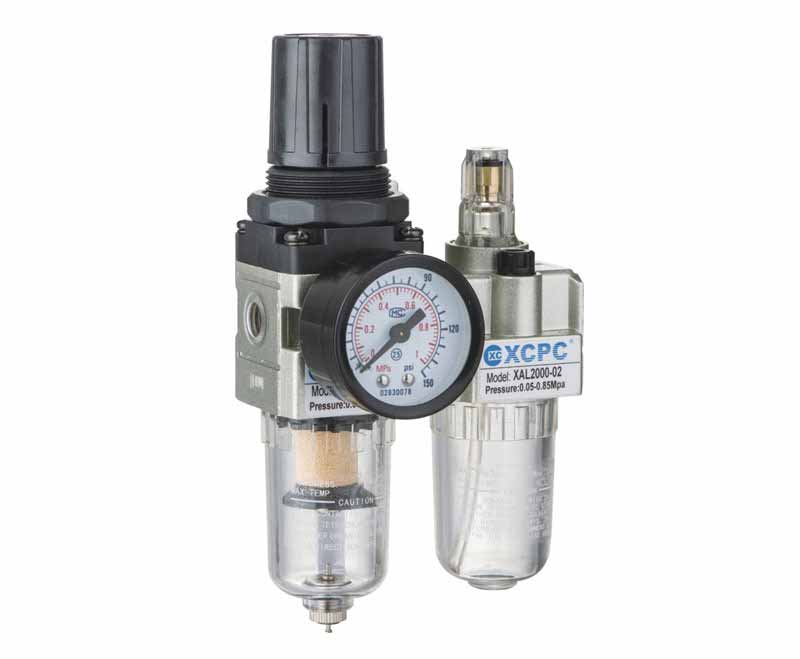

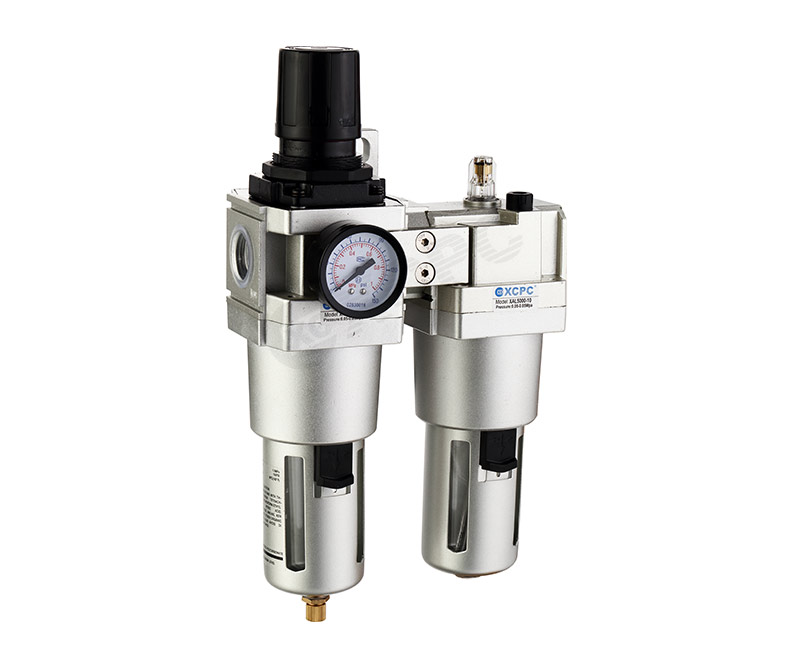

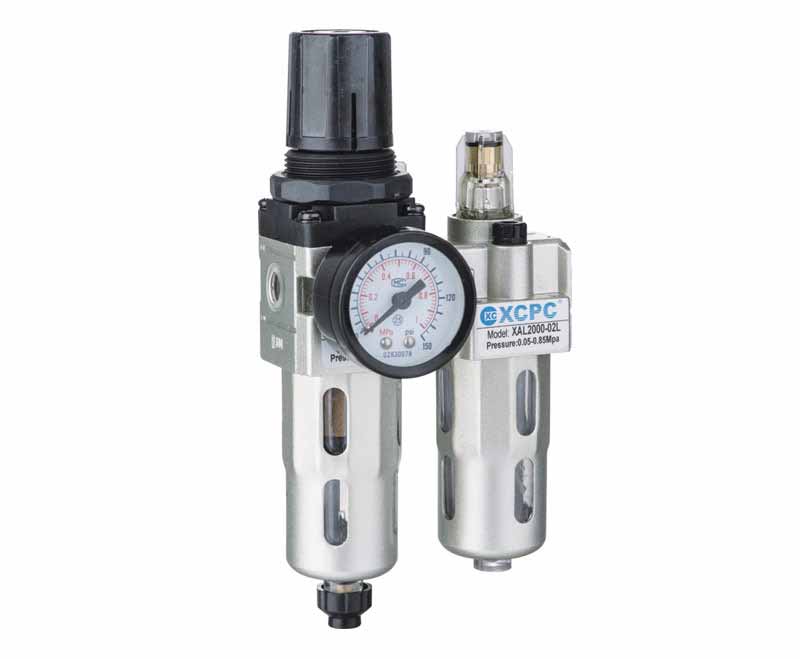

 Filter Precision
|
25µ
|
|
Highest Working Pressure
|
1.0MPa
|
|
Ensured pressure Resistance
|
1.5MPa
|
|
Operating Temperature Range
|
5-60℃
|
|
Recommended Oil Use
|
lSO VG 32
|
|
Container Material
|
Polycarbonate
|

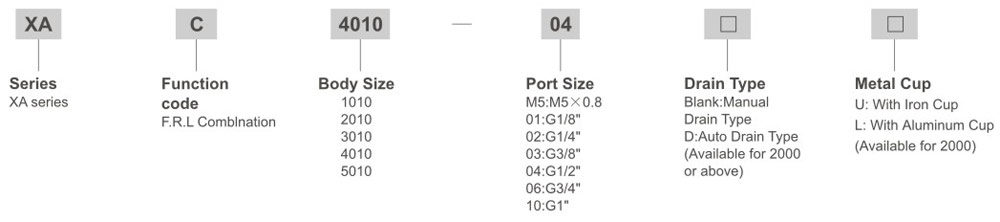

| Model |
XAC1010-M5 |
XAC2010-01 |
XAC2010-02 |
XAC3010-02 |
XAC3010-03 |
XAC4010-03 |
XAC4010-04 |
XAC4010-06 | XAC5010-06 |
XAC5010-10 |
|
| Rated Flow |
90 |
500 | 500 | 1700 | 1700 | 3000 | 3000 | 3000 | 4000 | 4000 | |
| Port Size | M5 | G1/8" | G1/4" | G1/4" | G3/8" | G3/8" | G1/2" | G3/4" | G3/4" | G1" | |
| Filter Precision | 25µ | ||||||||||
| Highest Working Pressure | 1.0MPa | ||||||||||
| Ensured pressure Resistance | 1.5MPa | ||||||||||
| Operating Temperature Range | 5-60℃ | ||||||||||
| Range of Adjustable Pressure | 0.05-0.7MPa | 0.05-0.85MPa | |||||||||
| Recommended Oil Use | lSO VG 32 | ||||||||||
| Container Material | Polycarbonate | ||||||||||
| Protective Cover | Not Available | Available | |||||||||
| Drain Function | Differential Drain | Differential Drain/Automatic Drain | |||||||||
| Valve Type | With Overflow | ||||||||||
|
Composing Elementsl |
FiIter&Regulator | XAW1000-M5 | XAW2000-01 | XAW2000-02 | XAW3000-02 | XAW3000-03 | XAW4000-03 | XAW4000-04 | XAW4000-06 | XAW5000-06 | XAW5000-10 |
| Lubricator | XAL1000-M5 | XAL2000-01 | XAL2000-02 | XAL3000-02 | XAL3000-03 | XAL4000-03 | XAL4000-04 | XAL4000-06 | XAL5000-06 | XAL5000-10 | |
|

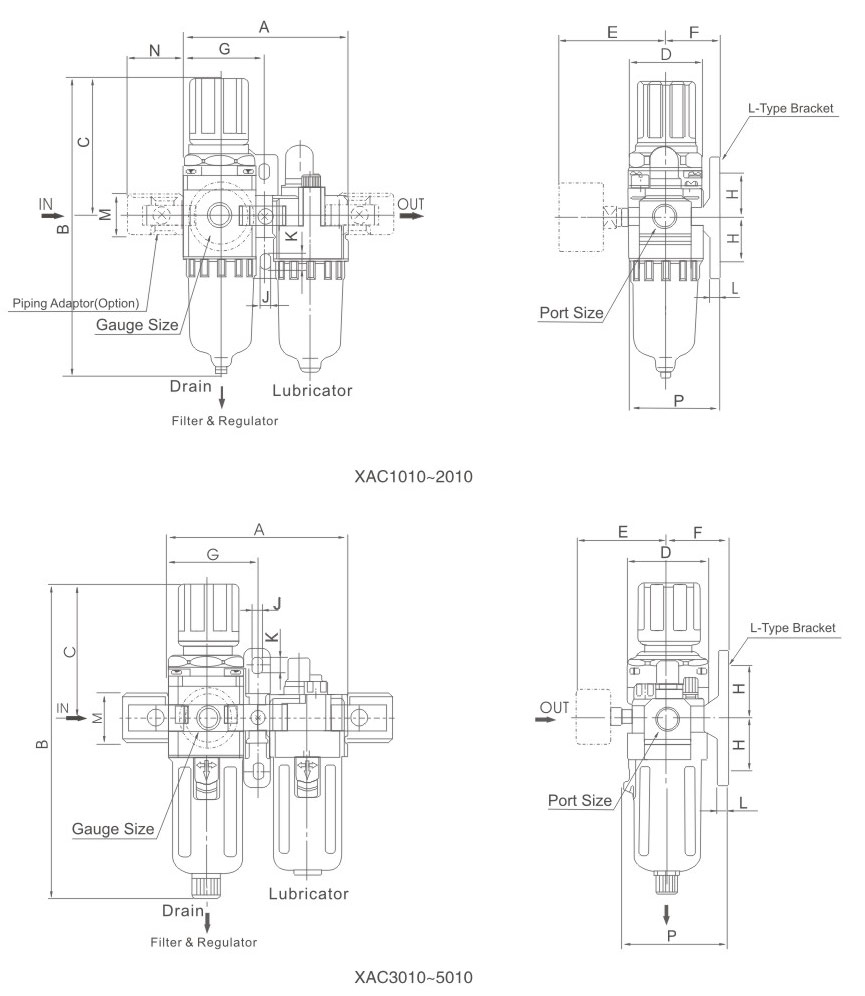

Model |
Port Size(G) |
A |
B |
C |
D |
E |
F |
G |
H |
J |
K |
L |
M |
N |
P |
|
XAC1010 |
M5 |
58 |
109.5 |
50.5 |
25 |
26 |
25 |
29 |
20 |
4.5 |
7.5 |
5 |
17.5 |
16 |
38.5 |
|
XAC2010 |
G1/8"-G1/4" |
90 |
164.5 |
78 |
40 |
56.8 |
30 |
45 |
24 |
5.5 |
8.5 |
5 |
22 |
23 |
50 |
|
XAC3010 |
G1/4"-G3/8" |
117 |
211 |
92.5 |
53 |
60.8 |
41 |
58.5 |
35 |
7 |
11 |
7 |
34.2 |
26 |
70.5 |
|
XAC4010 |
G3/8"-G1/2" |
154 |
262 |
112 |
70 |
70.5 |
50 |
77 |
40 |
9 |
13 |
7 |
43.2 |
33 |
88 |
|
XAC4010-06 |
G3-G4" |
164 |
267 |
114 |
70 |
70.5 |
50 |
82 |
40 |
9 |
13 |
7 |
46.2 |
36 |
88 |
|
XAC5010 |
G3/4"-G1" |
195 |
388 |
116 |
90 |
75.5 |
69.8 |
97.5 |
50 |
12 |
16 |
10.5 |
55.5 |
40 |
115 |
