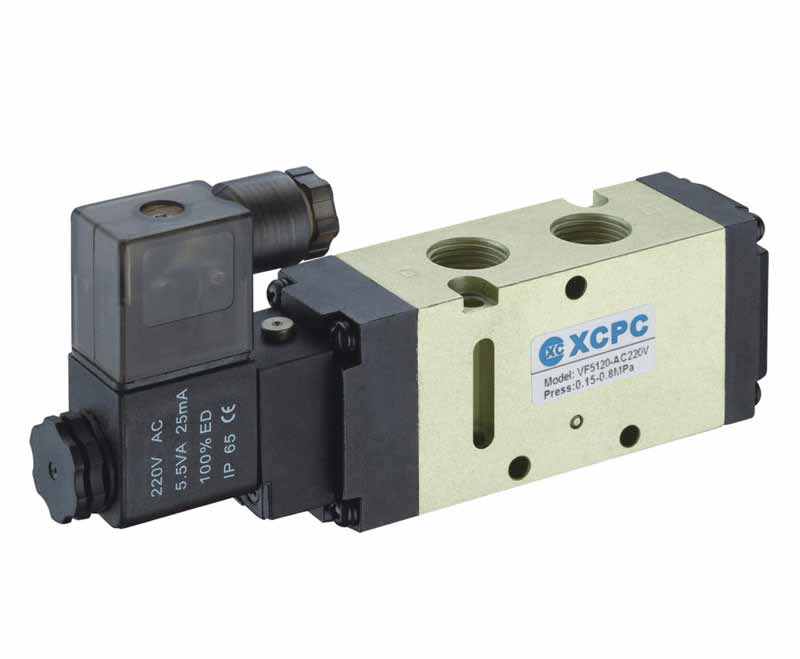

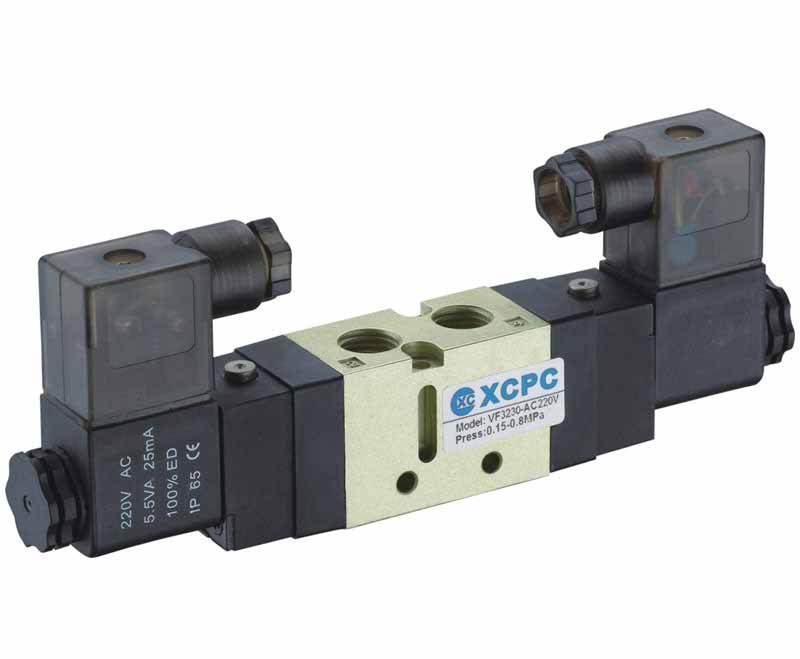

VF,VZ Series Solenoid Valve
SERIES: VF,VZ Series Solenoid Valve
VF,VZ Series Solenoid Valve
FEATURES
 Working Medium
|
40 Micron Filtered Air
|
|
Motion Pattern
|
Inner Guide Type
|
|
Working-Pressure
|
0.15~0.8MPa
|
|
Max.Pressure Resistance
|
1.2MPa
|
|
Operating Temperature
|
5~50℃
|
|
Voltage Range
|
±10%
|
Ordering Code
Specification
|
Model
|
VF3130
|
VF3230
|
VF33(4/5)30
|
VF5120
|
VF5220
|
VF53(4/5)20
|
VZ5120
|
VZ5220
|
VZ53(3/4)20
|
|
Position and Way No.
|
Two-position
Five-way |
Three-position
Five-way |
Two-position
Five-way |
Three-position
Five-way |
Two-position
Five-way |
Three-position
Five-way |
|||
|
Effective Section Area
|
16mm2(CV=0.89)
|
12mm2(CV=0.67)
|
25mm2(CV=1.40)
|
18mm2(CV=1.00)
|
12mm2(CV=0.67)
|
9mm2(CV=0.50)
|
|||
|
Working Medium
|
40 Micron Filtered Air
|
||||||||
|
Motion Pattern
|
Inner Guide Type
|
||||||||
|
Working-Pressure
|
0.15~0.8MPa
|
||||||||
|
Max.Pressure Resistance
|
1.2MPa
|
||||||||
|
Operating Temperature
|
5~50℃
|
||||||||
|
Voltage Range
|
±10%
|
||||||||
|
Power Consumption
|
AC:4.5VA DC:3W
|
||||||||
|
Insulation & Protection Class
|
IP65/F CIass.IP65
|
||||||||
|
Wiring Form
|
Lead Wire or Connector type
|
||||||||
|
Highest Action Frequency
|
5 Cycle / Sec
|
||||||||
|
Shortest Excitation Time
|
0.05 Second
|
||||||||
Overall Dimensions
