SLP Series Normal Close Solenoid Valve
SERIES: SLP Series Normal Close Solenoid Valve
SLP Series Normal Close Solenoid Valve
FEATURES
|
Normal Close, avaiable body: brass, SS316 Multiple seals are available for different medium. Wide size range from 1/8" to 2" with both thread and flange connection Diaphragm pilot solenoid valve, with lower working pressure. |

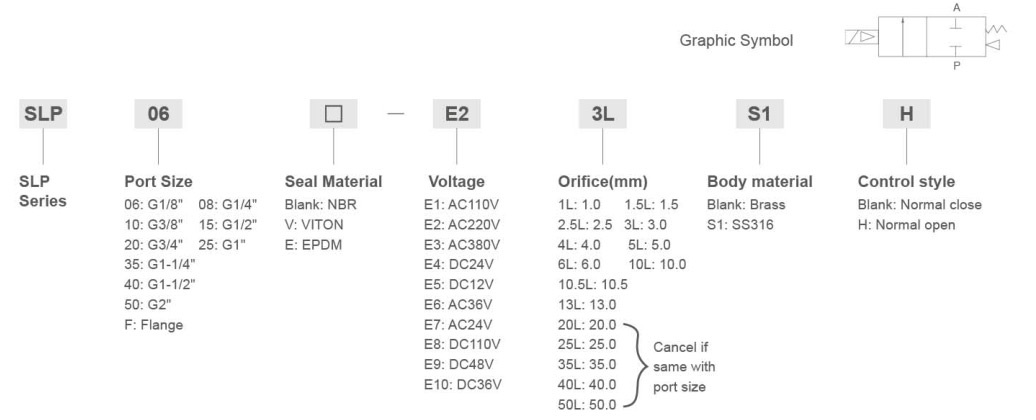

Ordering Code
Specification
| Port Size (G) | Orifice (mm) | CV Value | Pressure difference(Bar) | Max. temperature (℃) | Power | Model 220VAC 5C/60Hz | Overall dimension | |||||
| Min. pressure | Max. working pressure | VA | W | |||||||||
| Air、Gas | Water、Hot water、Liquid | Light oil ≤20CST | AC 220 | DC 24V | Brass | Stainless steel |
Length×Width×Height A×B×H(mm) |
|||||
| 1/8" | 3 | 0.23 | 0 | 13 | 13 | 10 | 80 | 22 | 13 | SLP06E2-3L | SLP06E2-3LS1 |
|
| 3 | 0.23 | 0 | 13 | 13 | – | 130 | 22 | 13 | SLP06EE2-3L | SLP06EE2-3LS1 |
|
|
| 3 | 0.23 | 0 | 13 | 13 | 10 | 120 | 22 | 13 | SLP06VE2-3L | SLP06VE2-3LS1 |
|
|
| 1/4" | 3 | 0.23 | 0 | 13 | 13 | 10 | 80 | 22 | 13 | SLP08E2-3L | SLP08E2-3LS1 |
|
| 3 | 0.23 | 0 | 13 | 13 | – | 130 | 22 | 13 | SLP08EE2-3L | SLP08EE2-3LS1 |
|
|
| 3 | 0.23 | 0 | 13 | 13 | 10 | 120 | 22 | 13 | SLP08VE2-3L | SLP08VE2-3LS1 |
|
|
| 10.5 | 1.47 | 0 | 10 | 10 | 10 | 80 | 22 | 13 | SLP08E2-10.5L | — |
|
|
| 10.5 | 1.47 | 0 | 10 | 10 | – | 130 | 22 | 13 | SLP08EE2-10.5L | — |
|
|
| 10.5 | 1.47 | 0 | 10 | 10 | 10 | 120 | 22 | 13 | SLP08VE2-10.5L | — |
|
|
| 3/8" | 3 | 0.3 | 0 | 13 | 13 | 10 | 80 | 22 | 13 | SLP10E2-3L | SLP10E2-3LS1 |
|
| 3 | 0.3 | 0 | 13 | 13 | 10 | 130 | 22 | 13 | SLP10EE2-3L | SLP10EE2-3LS1 |
|
|
| 3 | 0.3 | 0 | 13 | 13 | 10 | 120 | 22 | 13 | SLP10VE2-3L | SLP10VE2-3LS1 |
|
|
| 4 | 0.6 | 0 | 8 | 8 | 6 | 80 | 22 | 13 | SLP10E2-4L | SLP10E2-4LS1 |
|
|
| 4 | 0.6 | 0 | 8 | 8 | 6 | 130 | 22 | 13 | SLP10EE2-4L | SLP10EE2-4LS1 |
|
|
| 4 | 0.6 | 0 | 8 | 8 | 6 | 120 | 22 | 13 | SLP10VE2-4L | SLP10VE2-4LS1 |
|
|
| 10.5 | 1.68 | 0 | 10 | 10 | 10 | 80 | 22 | 13 | SLP10E2-10.5L | — |
|
|
| 10.5 | 1.68 | 0 | 10 | 10 | – | 130 | 22 | 13 | SLP10EE2-10.5L | — |
|
|
| 10.5 | 1.68 | 0 | 10 | 10 | 10 | 120 | 22 | 13 | SLP10VE2-10.5L | — |
|
|
| 13 | 4.5 | 0.5 | 16 | 16 | 13 | 80 | 22 | 13 | SLP10E2-13L | SLP10E2-13LS1 |
|
|
| 13 | 4.5 | 0.5 | 16 | 16 |
|
130 | 22 | 13 | SLP10EE2-13L | SLP10EE2-13LS1 |
|
|
| 13 | 4.5 | 0.5 | 16 | 16 | 13 | 120 | 22 | 13 | SLP10VE2-13L | SLP10VE2-13LS1 |
|
|
| 1/2" | 10.5 | 1.75 | 0 | 10 | 10 | 10 | 80 | 22 | 13 | SLP15E2-10.5L | — | 66×48×112 |
| 10.5 | 1.75 | 0 | 10 | 10 | – | 130 | 22 | 13 | SLP15EE2-10.5L | — | 66×48×112 | |
| 10.5 | 1.75 | 0 | 10 | 10 | 10 | 120 | 22 | 13 | SLP15VE2-10.5L | — | 66×48×112 | |
| 13 | 4.5 | 0.5 | 16 | 16 | 13 | 80 | 22 | 13 | SLP15E2-13L | SLP15E2-13LS1 | 66×48×112 | |
| 13 | 4.5 | 0.5 | 16 | 16 |
|
130 | 22 | 13 | SLP15EE2-13L | SLP15EE2-13LS1 | 66×48×112 | |
| 13 | 4.5 | 0.5 | 16 | 16 | 13 | 120 | 22 | 13 | SLP15VE2-13L | SLP15VE2-13LS1 | 66×48×112 | |
| 3/4" | 20 | 7.6 | 0.5 | 16 | 16 | 13 | 80 | 22 | 13 | SLP-20E2 | SLP-20E2S1 | 75×58×118 |
| 20 | 7.6 | 0.5 | 16 | 16 |
|
130 | 22 | 13 | SLP-20EE2 | SLP-20EE2S1 | 75×58×118 | |
| 20 | 7.6 | 0.5 | 16 | 16 | 13 | 120 | 22 | 13 | SLP-20VE2 | SLP-20VE2S1 | 75×58×118 | |
| 1" | 25 | 12 | 0.5 | 16 | 16 | 13 | 80 | 22 | 13 | SLP-25E2 | SLP-25E2S1 | 96×70×131 |
| 25 | 12 | 0.5 | 16 | 16 |
|
130 | 22 | 13 | SLP-25EE2 | SLP-25EE2S1 | 96×70×131 | |
| 25 | 12 | 0.5 | 16 | 16 | 13 | 120 | 22 | 13 | SLP-25VE2 | SLP-25VE2 | 96×70×131 | |
| 1-1/4" | 35 | 22 | 0.5 | 16 | 16 | 13 | 80 | 22 | 13 | SLP-35E2 | SLP-35E2S1 | 131×96×146 |
| 35 | 22 | 0.5 | 16 | 16 |
|
130 | 22 | 13 | SLP-35EE2 | SLP-35EE2S1 | 131×96×146 | |
| 35 | 22 | 0.5 | 16 | 16 | 13 | 120 | 22 | 13 | SLP-35VE2 | SLP-35VE2S1 | 131×96×146 | |
| 1-1/2" | 40 | 30 | 0.5 | 16 | 16 | 13 | 80 | 22 | 13 | SLP-40E2 | SLP-40E2S1 | 131×96×146 |
| 40 | 30 | 0.5 | 16 | 16 |
|
130 | 22 | 13 | SLP-40EE2 | SLP-40EE2S1 | 131×96×146 | |
| 40 | 30 | 0.5 | 16 | 16 | 13 | 120 | 22 | 13 | SLP-40VE2 | SLP-40VE2S1 | 131×96×146 | |
| 2" | 50 | 48 | 0.5 | 16 | 16 | 13 | 80 | 22 | 13 | SLP-50E2 | SLP-50E2S1 | 165×120×167 |
| 50 | 48 | 0.5 | 16 | 16 |
|
130 | 22 | 13 | SLP-50EE2 | SLP-50EE2S1 | 165×120×167 | |
| 50 | 48 | 0.5 | 16 | 16 | 13 | 120 | 22 | 13 | SLP-50VE2 | SLP-50VE2S1 | 165×120×167 | |
| Flange conn- ection | 25 | 12 | 0.5 | 16 | 16 | 13 | 80 | 22 | 13 | — | SLPFE2-25LS1 | 134×110×160 |
| 25 | 12 | 0.5 | 16 | 16 |
|
130 | 22 | 13 | — | SLPFEE2-25LS1 | 134×110×160 | |
| 25 | 12 | 0.5 | 16 | 16 | 13 | 120 | 22 | 13 | — | SLPPFVE2-25VLS1 | 134×110×160 | |
| Flange conn- ection | 35 | 22 | 0.5 | 16 | 16 | 13 | 80 | 22 | 13 | — | SLPFE2-35LS1 | 160×135×175 |
| 35 | 22 | 0.5 | 16 | 16 |
|
130 | 22 | 13 | — | SLPFEE2-35LS1 | 160×135×175 | |
| 35 | 22 | 0.5 | 16 | 16 | 13 | 120 | 22 | 13 | — | SLPFVE2-35LS1 | 160×135×175 | |
| Flange conn- ection | 40 | 30 | 0.5 | 16 | 16 | 13 | 80 | 22 | 13 | — | SLPFE2-40LS1 | 160×145×180 |
| 40 | 30 | 0.5 | 16 | 16 |
|
130 | 22 | 13 | — | SLPFEE2-40LS1 | 160×145×180 | |
| 40 | 30 | 0.5 | 16 | 16 | 13 | 120 | 22 | 13 | — | SLPFVE2-40LS1 | 160×145×180 | |
| Flange conn- ection | 50 | 48 | 0.5 | 16 | 16 | 13 | 80 | 22 | 13 | — | SLPFE2-50LS1 | 200×160×207 |
| 50 | 48 | 0.5 | 16 | 16 |
|
130 | 22 | 13 | — | SLPFEE2-50LS1 | 200×160×207 | |
| 50 | 48 | 0.5 | 16 | 16 | 13 | 120 | 22 | 13 | — | SLPFVE2-50LS1 | 200×160×207 | |
Overall Dimensions
