SI Cylinder Kits
SERIES: Cylinder Assembly Kits
SI Cylinder Kits
FEATURES
SI Kits(ISO6431) Bore size:Φ32.40.50.63.80.100.125.160.200
SUB-SERIES
Specification
|
Model/Specification
|
Part name
|
Material
|
Part name
|
Material
|
|
SI Kits(ISO6431) Bore size:Φ32.40.50.63.80.100.125.160.200
|
Front cover
|
Aluminum alloy
|
Piston seal
|
NBR
|
|
Back cover
|
Aluminum alloy
|
Wear ring
|
PA66
|
|
|
Piston
|
Aluminum alloy
|
Self lubricating bearing
|
PTFE+Brass
|
|
|
Pison rod(Without)
|
S45C hard chrome carbon steel
|
Magnet(optional)
|
RbFeb
|
|
|
Barrel(Without)
|
Hard anodized Aluminum
|
Cushion needle
|
Brass
|
|
|
Front Cover seal
|
NBR
|
Hexagon screw
|
Carbon steel
|
|
|
Cushion seal
|
NBR
|
Nut
|
Carbon steel
|
|
|
Piston rod O-ring
|
NBR
|
Profile bolt
|
Carbon steel
|
|
|
Cover O-ring
|
NBR
|
|
|

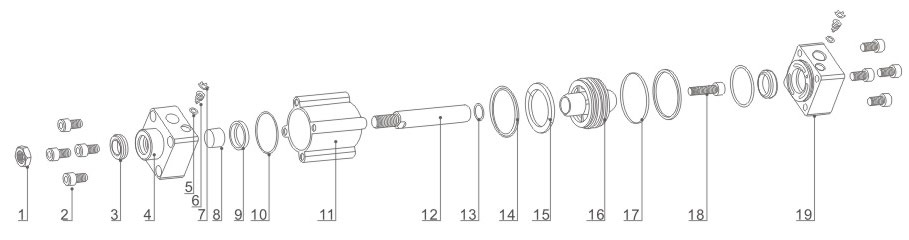

Other info
|
NO
|
Designation
|
NO
|
Designation
|
NO
|
Designation
|
NO
|
Designation
|
NO
|
Designation
|
|
1
|
Nut
|
5
|
O-ring
|
9
|
Cushion seal
|
13
|
Rod O-ring
|
17
|
Wear ring
|
|
2
|
Profile bolt
|
6
|
Adjustable screw
|
10
|
Cover O-ring
|
14
|
Piston seal
|
18
|
Hex Socket Screw
|
|
3
|
Front Cover seal
|
7
|
Block slip
|
11
|
Barrel(Without)
|
15
|
Magnet(optional)
|
19
|
Back cover
|
|
4
|
Front Cover
|
8
|
Self Lubricatiing bearing
|
12
|
Pison rod(Without)
|
16
|
Piston
|
|
|
