SAH402
SERIES: Auto drain
SAH402
FEATURES
This product serves as a drainer for high-pressure air source
system and functions to divert water for the whole pipeline system.
Specification
| Model |
SAH402-02 |
SAH402-03 |
SAH402-04 |
| Ensured Pressure Resistance |
2.5MPa |
||
| Operating Pressure | 0.15MPa-2.00MPa | ||
| Ambient and Fluid Temperature | 5-60℃ | ||
| Port Size | G1/4" | G3/8" | G1/2" |
| Drain Bore | G1/8" | G1/4" | G3/8" |
| Drain Status | Normal Open type | ||
| Working Medium | Compressed Air | ||

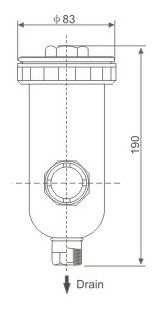

Overall Dimensions
Other info
Range of Application:
This product serves as a drainer for high-pressure air source
system and functions to divert water for the whole pipeline system.
It is generally used for the equipment inconveni ent for m anual
discharge of water or comparatively high frequency of water discharge
such as the low spots of pipeline,fr eezing type air drier and the water
deposit place of air chamber etc.
Feature：
Auto Drain
Metal protective cover with view window
Points For Attention:
When using,the draine r should be installed verticaIly the drain port
facing down.
