 Maximum pressure
|
1.0MPa
|
|
Sensitivity
|
Within 0.2% of full span
|
|
Repeatability
|
Within ±0.5% of full span
|
|
Ambient and Fluid Temperature
|
-5~+60(With no freezing)
|
|
Pressure Gange Port
|
G1/8
|
|
Specification
|
PIR1000-01
|
PIR1010-01
|
PIR1020-01
|
PIR2000-02
|
PIR2010-02
|
PIR2020-02
|
PIR3000-03/04
|
PIR3010-03/04
|
PIR3020-03/04
|
|
Pressure Range
|
0.005~0.2
|
0.01~0.4
|
0.01~0.8
|
0.005~0.2
|
0.01~0.2
|
0.01~0.8
|
0.01~0.2
|
0.01~0.4
|
0.01~0.8
|
|
Port Size
|
G1/8
|
G1/4
|
G3/8. G1/2
|
||||||
|
Air consumption
|
Max 3.5L/min
|
Max 3.1L/min
|
Max 9.5L/min Outlet: Max 2L/min
|
||||||
|
Minimum pressure
|
Setting pressure+0.05
|
Setting pressure+0.05
|
Setting pressure+0.05
|
||||||
|
Maximum pressure
|
1.0MPa
|
||||||||
|
Sensitivity
|
Within 0.2% of full span
|
||||||||
|
Repeatability
|
Within ±0.5% of full span
|
||||||||
|
Ambient and Fluid Temperature
|
-5~+60(With no freezing)
|
||||||||
|
Pressure Gange Port
|
G1/8
|
||||||||
|

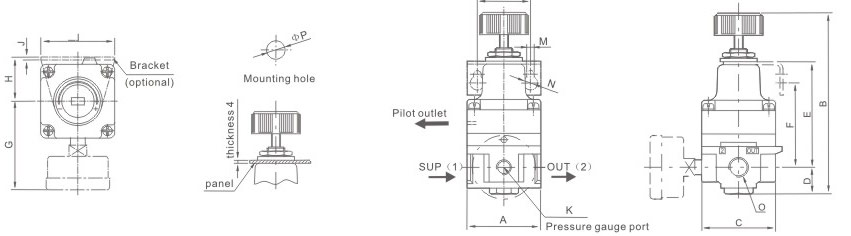

Model |
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
L |
M
|
N
|
O
|
P
|
|
PIR1000-01 |
35 |
90 |
35 |
10 |
51 |
44 |
43 |
25 |
42 |
2 |
G1/8 |
28 |
4.5
|
Φ8.5
|
G1/8
|
Φ10.5
|
|
PIR1010-01 |
35 |
90 |
35 |
10 |
51 |
44 |
43 |
25 |
42 |
2 |
G1/8 |
28 |
4.5
|
Φ8.5
|
G1/8
|
Φ10.5
|
|
PIR1020-01 |
35 |
90 |
35 |
10 |
51 |
44 |
43 |
25 |
42 |
2 |
G1/8 |
28 |
4.5
|
Φ8.5
|
G1/8
|
Φ10.5
|
|
PIR2000-02 |
50 |
123 |
50 |
18 |
71 |
63 |
60 |
30 |
50 |
2 |
G1/8 |
36 |
5.5
|
Φ9.5
|
G1/8
|
Φ12.5
|
|
PIR2010-02 |
50 |
123 |
50 |
18 |
71 |
63 |
60 |
30 |
50 |
2 |
G1/8 |
36 |
5.5
|
Φ9.5
|
G1/8
|
Φ12.5
|
|
PIR2020-02 |
50 |
123 |
50 |
18 |
71 |
63 |
60 |
30 |
50 |
2 |
G1/8 |
36 |
5.5
|
Φ9.5
|
G1/8
|
Φ12.5
|
|
PIR3000-03 |
66 |
148 |
66 |
22 |
76 |
76 |
68 |
48 |
82 |
2.3 |
G1/8 |
60 |
9
|
Φ15.5
|
G3/8
|
Φ12.5
|
|
PIR3010-03 |
66 |
148 |
66 |
22 |
76 |
76 |
68 |
48 |
82 |
2.3 |
G1/8 |
60 |
9
|
Φ15.5
|
G1/2
|
Φ12.5
|
|
PIR3020-03 |
66 |
148 |
66 |
22 |
76 |
76 |
68 |
48 |
82 |
2.3 |
G1/8 |
60 |
9
|
Φ15.5
|
|
Φ12.5
|
