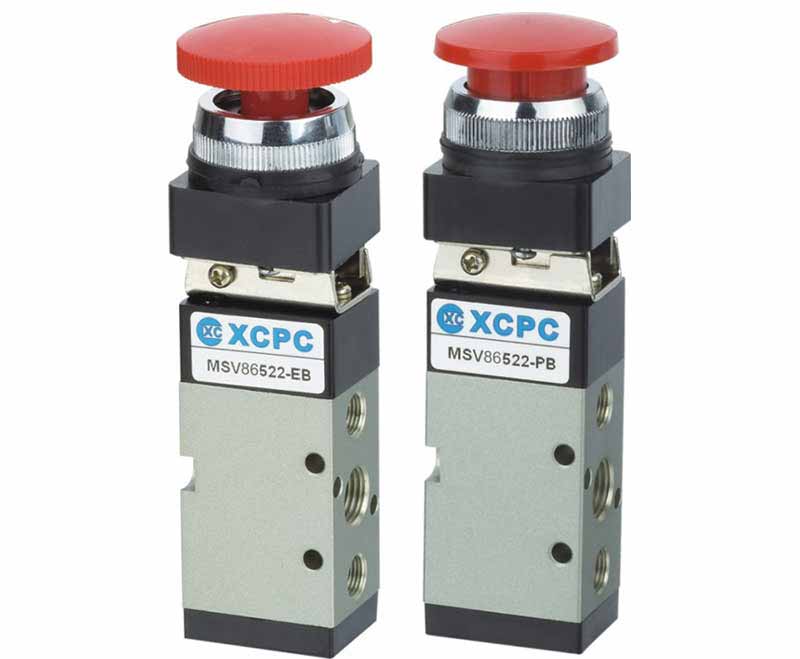

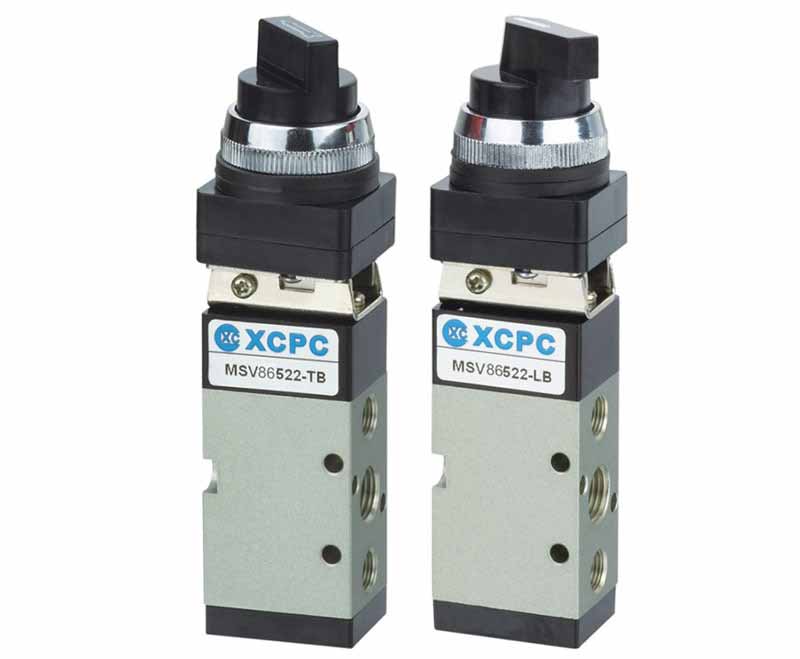

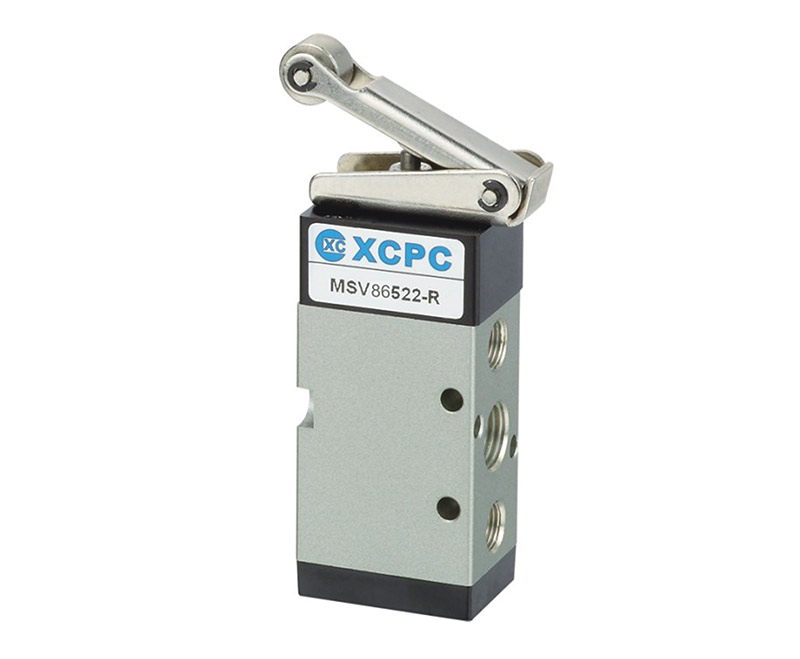

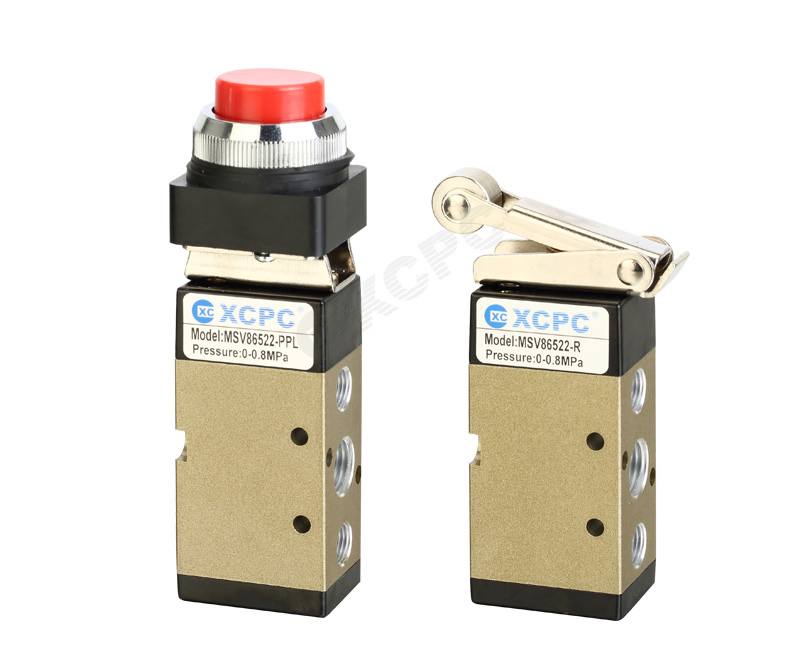

MSV Series Mechanical Valve
SERIES: MSV Series Mechanical Valve
MSV Series Mechanical Valve
FEATURES
 Working Medium
|
40 Micron Filtered Air
|
|
pressure Range
|
0~0.8Mpa
|
|
Temperature Range
|
0~60℃
|
Ordering Code
Specification
|
Model
|
MSV86321
|
MSV86522
|
MSV98322
|
|
Working Medium
|
40 Micron Filtered Air
|
||
|
Position and Way No.
|
Two-position
Three-way |
Two-position
Five-way |
Two position
Three-way |
|
Effective Section Area
|
12mm 2(CV=0.67)
|
16mm 2(CV=0.89)
|
16mm 2(CV=0.89)
|
|
Port Size
|
G1/8"
|
G1/4"
|
G1/4"
|
|
pressure Range
|
0~0.8Mpa
|
||
|
Temperature Range
|
0~60℃
|
||

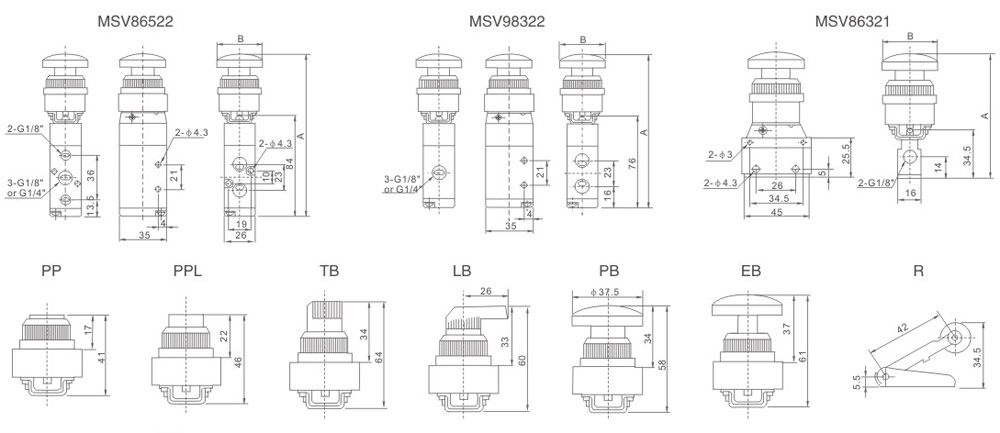

Overall Dimensions
|
Series
|
Symbol/Model
|
PP
|
PPL
|
LB
|
TB
|
EB
|
PB
|
R
|
|

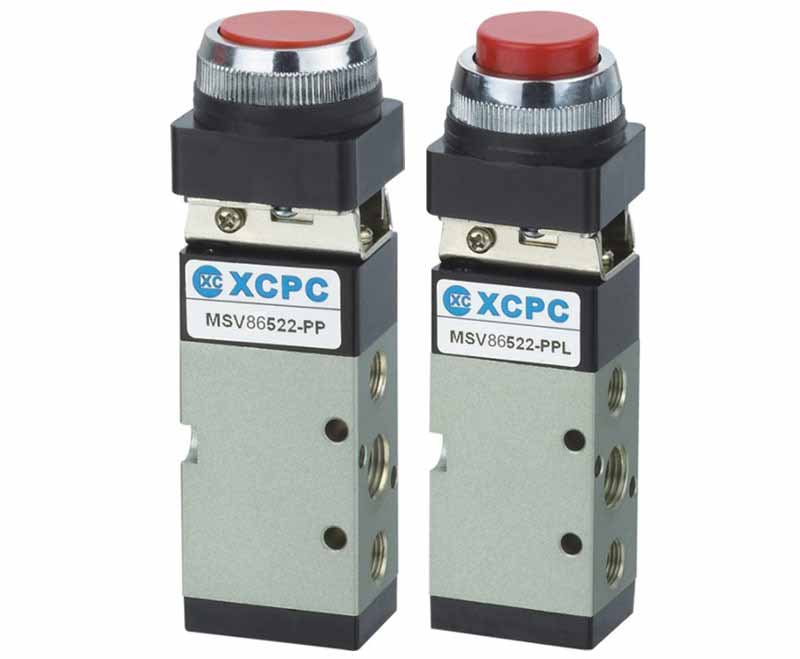

MSV86522
|
A
|
114
|
119
|
133
|
136.5
|
134
|
131
|
107.5
|
|
B
|
39.5
|
24.5
|
26.5
|
36.5
|
39.5
|
37.5
|
42.5
|
|
|
MSV98322
|
A
|
106
|
111
|
125
|
129.5
|
126
|
123
|
99.5
|
|
B
|
39.5
|
24.5
|
26.5
|
36.5
|
39.5
|
37.5
|
42.5
|
|
|
MSV86321
|
A
|
66
|
71
|
85
|
88.5
|
86
|
83
|
59.5
|
|
B
|
39.5
|
24.5
|
26.5
|
36.5
|
39.5
|
37.5
|
42.5
|
