MAL Cylinder Kits
SERIES: Cylinder Assembly Kits
MAL Cylinder Kits
FEATURES
MAL Kits Bore size:Φ16.20.25.32.40
SUB-SERIES
Specification
|
Model/Specification
|
Part name
|
Material
|
Part name
|
Material
|
|
MAL Kits Bore size:Φ16.20.25.32.40
|
Front cover
|
Aluminum alloy
|
Piston seal
|
NBR
|
|
Back cover
|
Aluminum alloy
|
Wear ring
|
PA66
|
|
|
Piston
|
Aluminum alloy
|
Self lubricating bearing
|
PTFE+Brass
|
|
|
Pison rod(Without)
|
S45C hard chrome carbon steel
|
Magnet(optional)
|
RbFeb
|
|
|
Barrel(Without)
|
Hard anodized Aluminum
|
Cushion needle
|
Brass
|
|
|
Anti-bump cushion
|
NBR
|
Hexagon screw
|
Carbon steel
|
|
|
Front Cover seal
|
NBR
|
Nut
|
Carbon steel
|
|
|
Cover O-ring
|
NBR
|
Muffler
|
Cu
|
Other info
|
NO
|
Designation
|
NO
|
Designation
|
NO
|
Designation
|
NO
|
Designation
|
NO
|
Designation
|
|

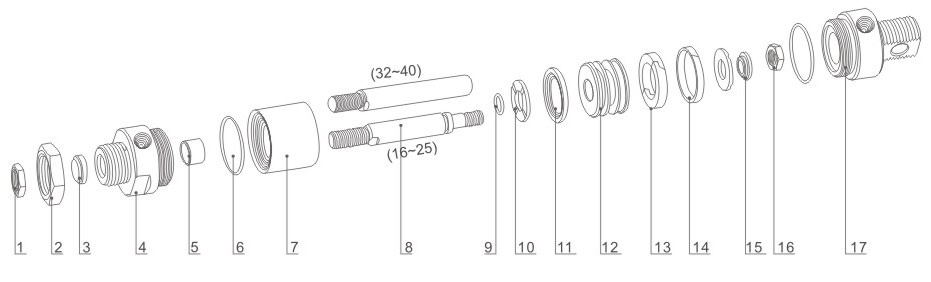

1
|
Rod Nut
|
5
|
Self Lubricatiing bearing
|
9
|
Rodr O-ring
|
13
|
Magnet(optional)
|
17
|
Back cover
|
|
2
|
Cover Nut
|
6
|
Cover O-ring
|
10
|
Anti-bump cushion
|
14
|
Wear ring
|
|
|
|
3
|
Front Cover seal
|
7
|
Barrel(Without)
|
11
|
Piston seal
|
15
|
Impact gasket
|
|
|
|
4
|
Front Cover
|
8
|
Pison rod(Without)
|
12
|
Piston
|
16
|
Nut
|
|
|
