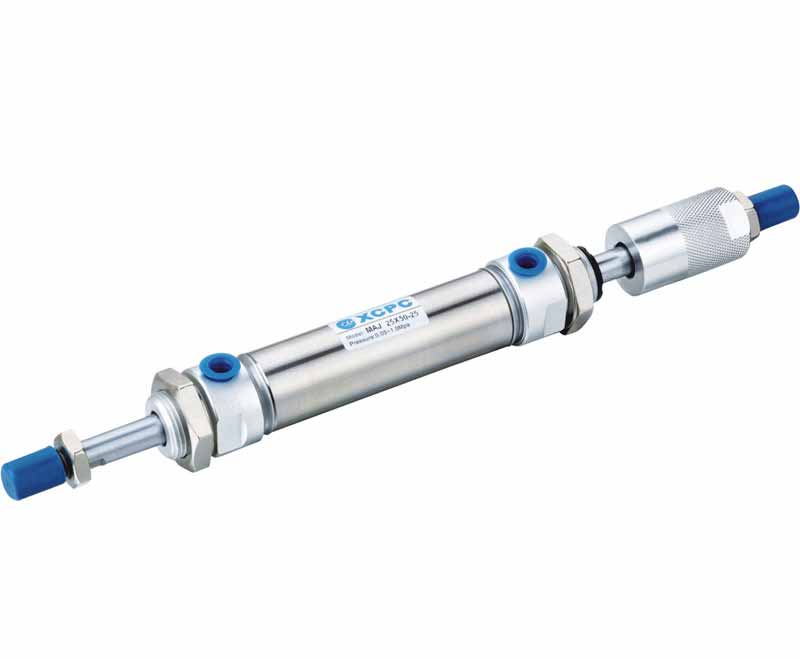

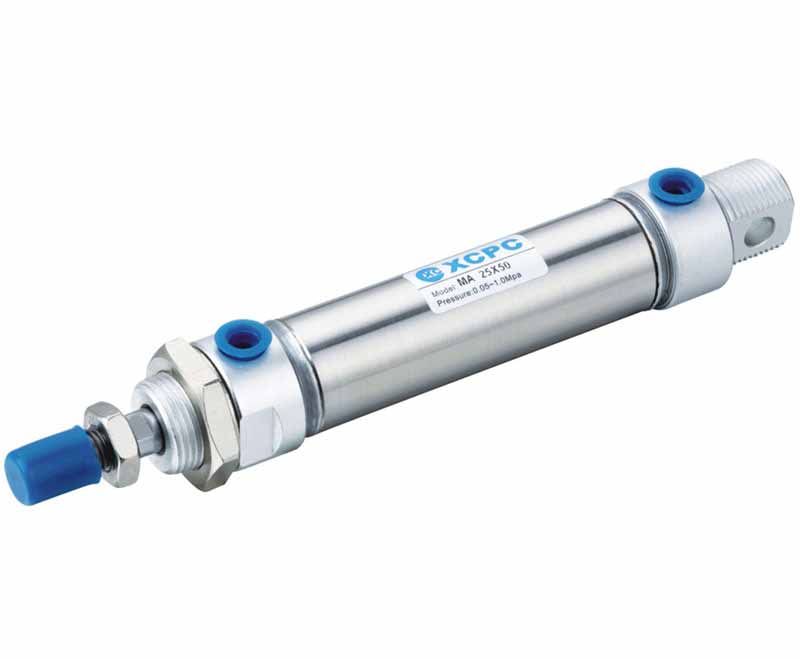

MA Series Mini Cylinder

SERIES: MA Series Mini Cylinder

MA Series Mini Cylinder

FEATURES

Motion pattern		Double Action or Single Action
Working Medium		Air
Operating Voltage Range		0.1~0.9MPa
Ensured Pressure Resistance		1.35MPa
Operating Temperature Range		-5~70℃
Operating Speed Range		50~800mm/s

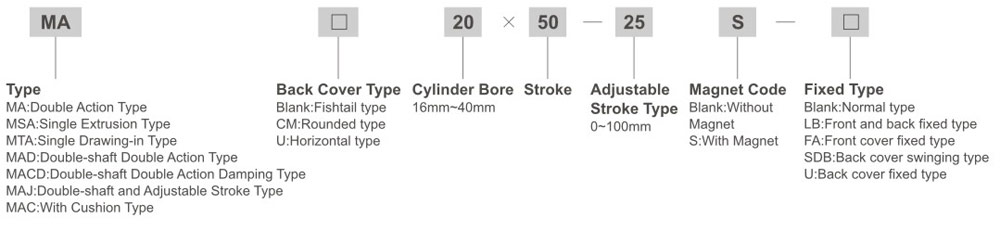

Ordering Code

Specification

Bore(mm)		16	20	25	32	40
Motion pattern		Double Action or Single Action
Working Medium		Air
Fixed Type		Normal Type LB/Type FA/Type SDB/Type U/Type
Operating Voltage Range		0.1~0.9MPa
Ensured Pressure Resistance		1.35MPa
Operating Temperature Range		-5~70℃
Operating Speed Range		50~800mm/s
Buffer Type	Standard Type	Anti-crash cushion
	Damping Type	-	Adjustable cushion
Pipe Size		M5×0.8	G1/8"

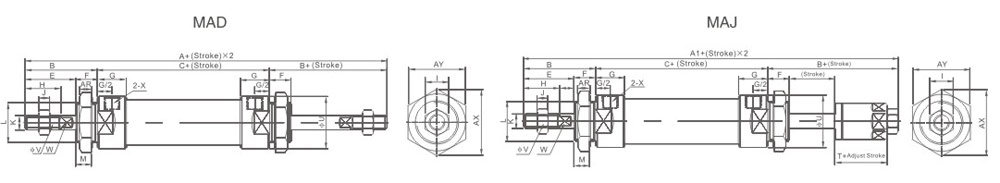

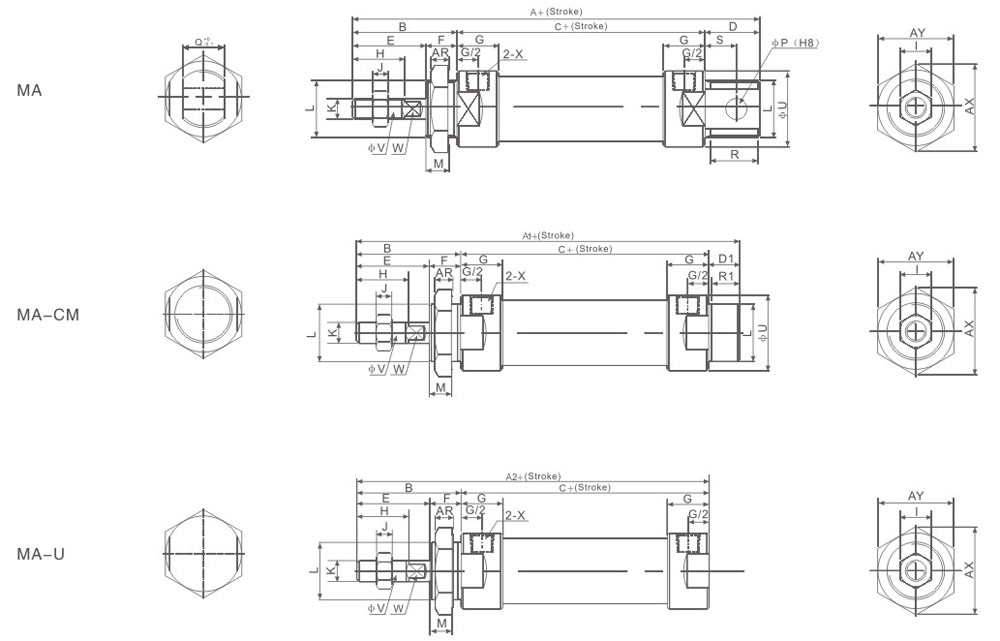

Overall Dimensions

Bore/Symbol	A	A1	A2	B	C	D	D1	E	F	G	H	I	J	K
16	114	114	98	38	60	16	16	22	16	10	16	10	5	M6×1
20	137	128	116	40	76	21	12	28	12	16	20	12	6	M8×1.25
25	141	134	120	44	76	21	14	30	14	16	22	17	6	M10×1.25
32	147	134	120	44	76	27	14	30	14	16	22	17	6	M10×1.25
40	149	136	122	46	76	27	14	32	14	16.7	24	17	7	M12×1.25

Bore/Symbol	L	M	P	Q	R	R1	S	U	V	W	X	AR	AX	AY
16	M16×1.5	14	6	12	14	14	9	21	6	5	M5	6	24	27.5
20	M22×1.5	10	8	16	19	10	12	27	8	6	G1/8"	7	33	29
25	M22×1.5	12	8	16	19	12	12	30	10	8	G1/8"	7	33	29
32	M24×2.0	12	10	16	25	12	15	35	12	10	G1/8"	8	37	32
40	M30×2.0	12	12	20	25	12	15	41.6	16	14	G1/8"	9	47	41

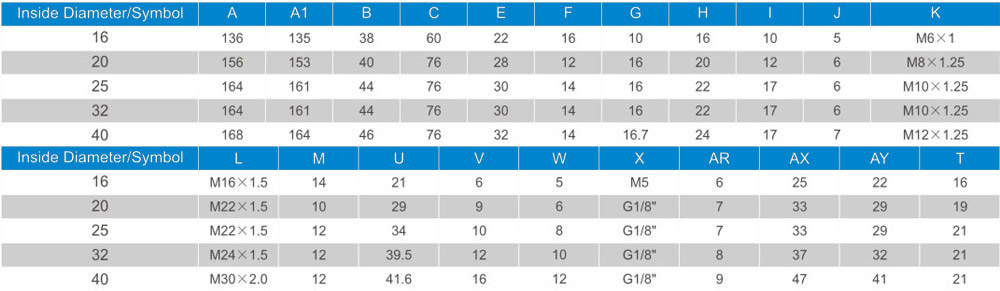

Symbol	A		A1		A2		B	C		D	D1	E	F	G	H	I	J
Bore/Stroke	0-50	51-100	0-50	51-100	0-50	51-100	B	0-50	51-100	D	D1	E	F	G	H	I	J
16	114	139	128	153	98	123	38	60	85	16	16	22	16	10	16	10	5
20	137	162	134	159	116	141	40	76	101	21	12	28	12	16	20	12	6
25	141	166	134	159	120	145	44	76	101	21	14	30	14	16	22	17	6
32	147	172	136	161	120	145	44	76	101	27	14	30	14	16	22	17	6
40	149	174	122	144	122	147	46	76	101	27	14	32	14	22	24	17	7
Inside Diameter/Symbol	K		L		M	P	Q	R	R1	S	U	V	W	X	AR	AX	AY
16	M6×1		M16×1.5		14	6	12	14	14	9	21	6	5	M5	6	25	22
20	M8×1.25		M22×1.5		10	8	16	19	10	12	27	8	6	G1/8"	7	33	29
25	M10×1.25		M22×1.5		12	8	16	19	12	12	30	10	8	G1/8"	7	33	29
32	M10×1.25		M24×2.0		12	10	16	25	12	15	35	12	10	G1/8"	8	37	32
40	M12×1.25		M30×2.0		12	12	20	25	12	15	41.6	16	14	G1/8"	9	47	41

Other info

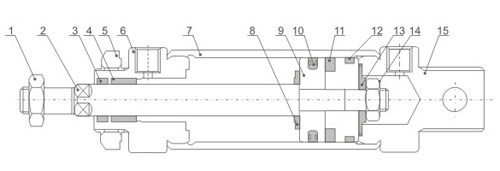

NO.	Designation
1	Piston Rod Nut
3	Front Cover Seal Ring
5	Front Cover Nut
7	Stainless steel tube
9	Piston
11	Magnet(Optional)
13	Seal cushion
15	Back Cover

NO.	Designation
2	Piston Rod
4	Oiled Bearing
6	Front Cover
8	Anti-crash cushion
10	Piston O-Ring
12	Wear Ring
14	Hex socket screw

Bore(mm)	Standard Stroke	Max.Stroke	Permissible Stroke
16	25 50 75 80 100 125 160 175 200	300	500
20	25 50 75 80 100 125 160 175 200 250 300	500	650
25	25 50 75 80 100 125 160 175 200 250 300 350 400 450 500	500	650
32	25 50 75 80 100 125 160 175 200 250 300 350 400 450 500	500	650
40	25 50 75 80 100 125 160 175 200 250 300 350 400 450 500	500	650
