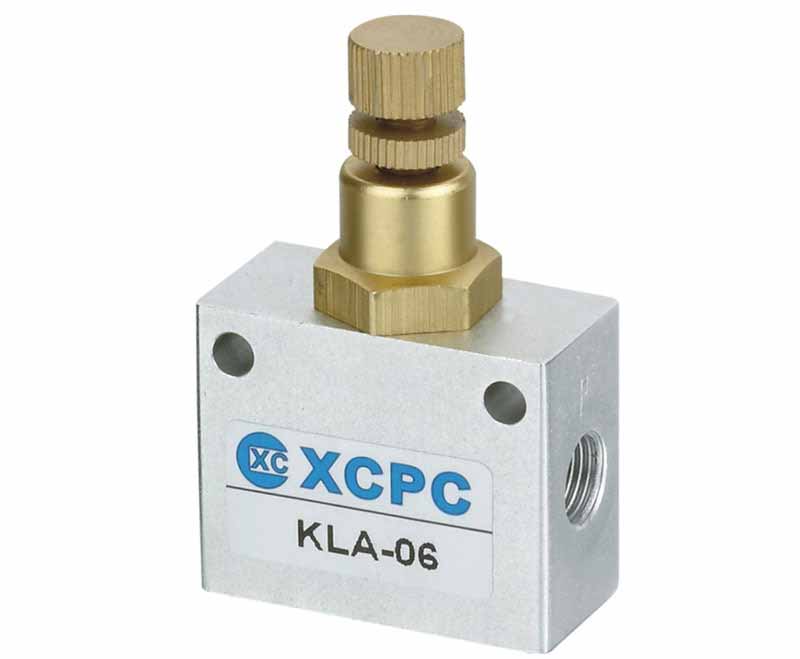

KLA Series Check Valve
SERIES: KLA Series Check Valve
KLA Series Check Valve
FEATURES
 Working Medium
|
Air
|
|
Working-pressure Range
|
0.5~0.95 Kgf/cm2
|
|
Ensured Pressure Resistance
|
15.0 Kgf/cm2
|
|
Operating Temperature Range
|
-5~60
|
|
Body of Material
|
AluminumAlloy Lyl2
|

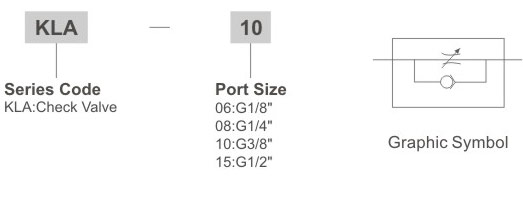

Ordering Code
Specification
|
Model
|
KLA-06
|
KLA-08
|
KLA-10
|
KLA-15
|
|
|
Working Medium
|
Air
|
||||
|
Port Size
|
G1/8"
|
G1/4"
|
G3/8"
|
G1/2"
|
|
|
Working-pressure Range
|
0.5~0.95 Kgf/cm2
|
||||
|
Ensured Pressure Resistance
|
15.0 Kgf/cm2
|
||||
|
Operating Temperature Range
|
-5~60
|
||||
|
Body of Material
|
AluminumAlloy Lyl2
|
||||
|
Standard Rated Flow(L/min
|
Check Valve
|
200
|
450
|
1250
|
1650
|
|
One-way Valve
|
400
|
800
|
1500
|
2000
|
|

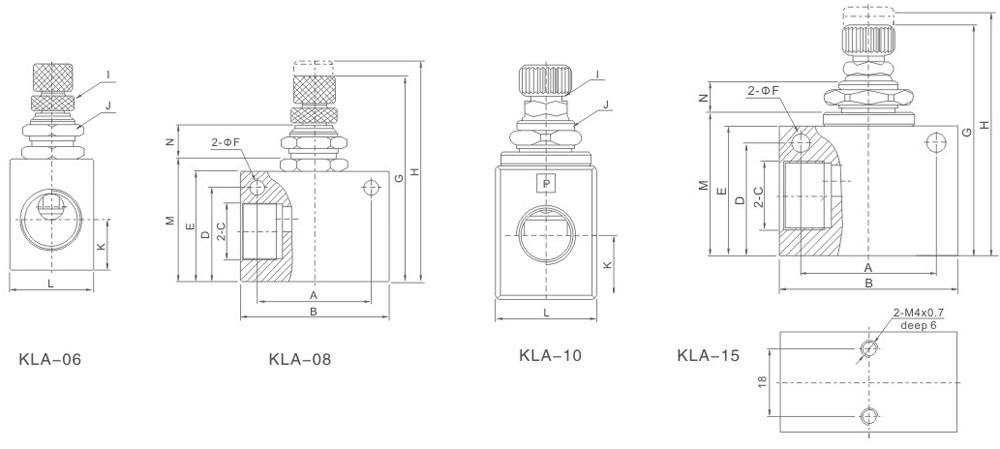

Overall Dimensions
|
Model/Symbol
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
I
|
J
|
K
|
L
|
M
|
N
|
|
KLA-06
|
22
|
32
|
PT1/8
|
18
|
23
|
4.3
|
46.8
|
52.3
|
M6×0.5
|
M12×0.75
|
10
|
18
|
26
|
8.6
|
|
KLA-08
|
26
|
36
|
PT1/4
|
23
|
27
|
4.3
|
50.8
|
56.3
|
M6×0.5
|
M12×0.75
|
13.5
|
18
|
30
|
8.6
|
|
KLA-10
|
35
|
50
|
G3/8
|
32
|
37
|
5.3
|
65
|
74
|
M8×0.75
|
M16×1
|
17.5
|
28
|
40.5
|
10.2
|
|
KLA-15
|
35
|
50
|
G1/2
|
32
|
37
|
5.3
|
65
|
74
|
M8×0.75
|
M16×1
|
17.5
|
28
|
40.5
|
10.2
|
