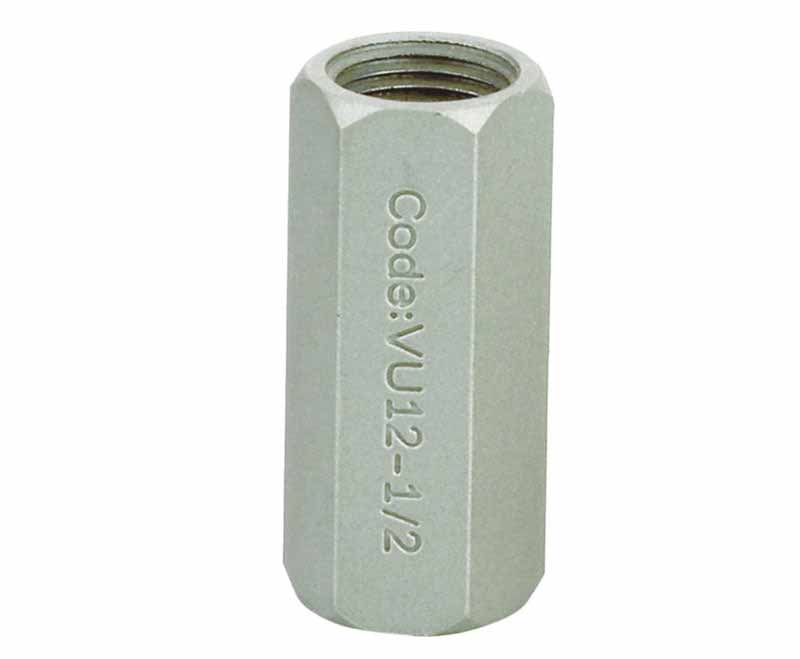

KAM Series Check Valve
SERIES: KAM Series Check Valve
KAM Series Check Valve
FEATURES
 Operation Medium
|
Compress Air
|
|
Working Temperature Range
|
-5~60℃
|
|
Working Pressure
|
0.05~1.2MPa
|
Ordering Code
Specification
|
Model
|
KAM-06
|
KAM-08
|
KAM-10
|
KAM-15
|
|
Port Size
|
G1/8"
|
G1/4"
|
G3/8"
|
G1/2"
|
|
Flow mm2/S
|
10
|
20
|
40
|
60
|
|
Leak Out Flow(cm2/min)
|
≤45
|
≤60
|
≤80
|
≤95
|
|
Operation Medium
|
Compress Air
|
|||
|
Working Temperature Range
|
-5~60℃
|
|||
|
Working Pressure
|
0.05~1.2MPa
|
|||

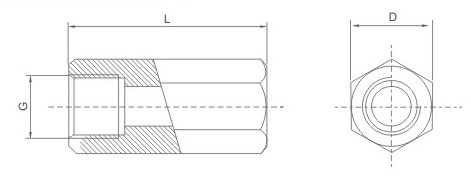

Overall Dimensions
|
Model
|
G
|
L
|
D
|
|
KAM-03
|
M5
|
21
|
10
|
|
KAM-06
|
G1/8”
|
37
|
14
|
|
KAM-08
|
G1/4”
|
48
|
17
|
|
KAM-10
|
G3/8”
|
50
|
21
|
|
KAM-15
|
G1/2”
|
60
|
24
|
