ISO-Y

SERIES: ISO Standard Cylinder Accessories

ISO-Y

FEATURES

SUB-SERIES

ISO-LB TypeFoot Bracket

ISO-CA Type Single Earring

ISO-CB+Pin Type Double Earring

ISO-FA/FB Type Flange

ISO-UJ Type Float Joint

ISO-PHS Type Fish Eye Joint

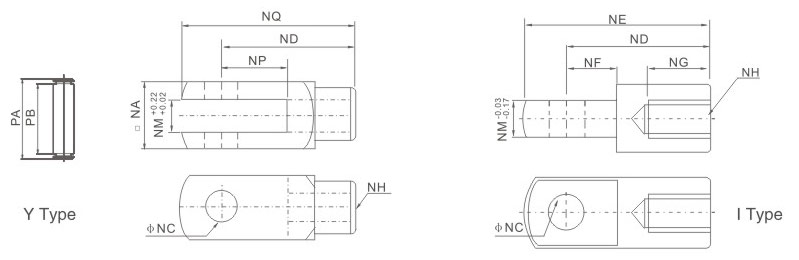

Overall Dimensions

Symbol/Bore	32	40	50	63	80	100	125	160	200
NA	19	25.4	32	32	44.4	44.4	55	70	70
NC	10	12	16	16	20	20	30	35	35
ND	40	48	64	64	80	80	110	144	144
NE	52	67	89	89	112	112	155	201	201
NF	15	24	32	32	40	40	50	50	55
NG	20	20	23	23	30	30	56	72	72
NH	M10* 1.25	M12* 1.25	M16* 1.5	M16* 1.5	M20* 1.5	M20 1.5	M27* 2.0	M36* 2.0	M36* 2.0
NM	10	12	16	16	20	20	30	35	35
NP	20	24	32	32	40	40	64	72	72
NQ	52	62	83	83	105	105	148	191	191
PA	26.2	32.8	39.3	39.3	53.3	53.3	64	80	80
PB	20	26.5	33	33	45	45	55.6	70.6	70.6
