ISO-UJ Type Float Joint
SUB-SERIES

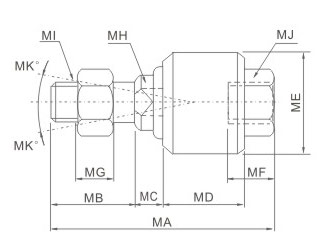

Overall Dimensions
| Symbol/Bore | MA | MB | MC | MD | ME | MF | MG | MH | MI | MK |
| 32 | 58 | 22 | 7 | 21 | 26 | 11.5 | 7 | 10 | M10*1.25 | 12 |
| 40 | 58 | 22 | 8 | 21 | 28 | 11.5 | 8 | 12 | M12*1.25 | 12 |
| 50 | 90 | 27 | 10 | 41 | 44.5 | 20 | 10 | 17 | M16*1.5 | 7 |
| 63 | 90 | 27 | 10 | 41 | 44.5 | 20 | 10 | 17 | M16*1.5 | 7 |
| 80 | 102 | 29 | 13 | 46 | 53 | 24 | 13 | 22 | M20*1.5 | 10 |
| 100 | 102 | 29 | 13 | 46 | 53 | 24 | 12 | 22 | M20*1.5 | 10 |
| 125 | 147 | 54 | 13 | 64 | 62 | 39 | 14 | 30 | M27*2.0 | 9 |
| 160 | 147 | 43 | 23 | 58 | 88 | 35 | 13.5 | 36 | M36*2.0 | 15 |
| 200 | 147 | 43 | 23 | 58 | 88 | 35 | 13.5 | 36 | M36*2.0 | 15 |
