HSV Series Sliding Valve
SERIES: HSV Series Sliding Valve
HSV Series Sliding Valve
FEATURES
![]() |
Filtered Air
|
![]() |
0~1.0MPa
|
![]() |
5~60℃
|

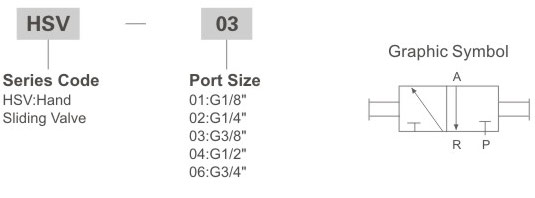

Ordering Code
![](http://www.china-pneumatic.com/uploads/image/20200327/20200327105850_11082.jpg)
Specification
Model
|
HSV-01
|
HSV-02
|
HSV-03
|
HSV-04
|
HSV-05
|
Port Size
|
G1/8"
|
G1/4"
|
G3/8"
|
G1/2"
|
G3/4"
|
Flow Bore
|
4mm
|
7mm
|
10mm
|
12mm
|
18mm
|
Working Medium
|
Filtered Air
|
||||
Working-pressure
|
0~1.0MPa
|
||||
Ambient Temperature Range
|
5~60℃
|
||||
Working Force
|
20N
|
30N
|
Overall Dimensions
Model/Symbol
|
A
|
B
|
C
|
D
|
E
|
L
|
G
|
HSV-01
|
20
|
13
|
14
|
3
|
20
|
32
|
G1/8
|
HSV-02
|
27
|
18
|
19
|
5
|
32
|
48
|
G1/4
|
HSV-03
|
30
|
21
|
22
|
5
|
32
|
48
|
G3/8
|
HSV-04
|
38
|
24
|
27
|
10
|
40
|
70
|
G1/2
|
HSV-06
|
45
|
32
|
34
|
10
|
45
|
75
|
G3/4
|
