DNC Series Standard Cylinder(ISO15552)
SERIES: DNC Series Standard Cylinder(ISO15552)
DNC Series Standard Cylinder(ISO15552)
FEATURES
Working Medium: Double Action
Motion Pattern: Fitered Air
Compression Pressure: 1.5MPa
Max.Operating Pressure: 1.0MPa
Min.Operating Pressure: 0.1MPa
Buffer: Air Buffer(Standard)

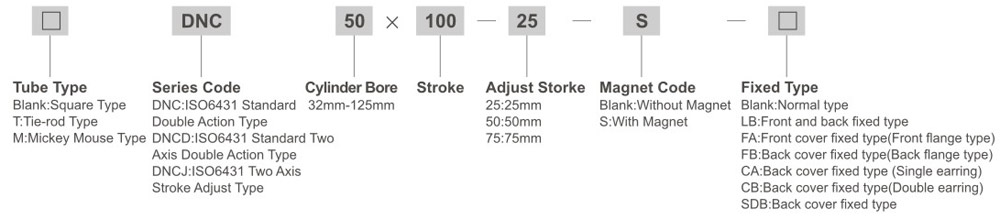

Ordering Code

Specification

Bore(mm)

32

40

50

63

80

100

125

Working Medium

Double Action

Motion Pattern

Fitered Air

Compression Pressure

1.5MPa

Max.Operating Pressure

1.0MPa

Min.Operating Pressure

0.1MPa

Buffer

Air Buffer(Standard)

ConditionTemperature

-5~70℃

Operating Speed

50~800mm/s

Port Size

G1/8"

G1/4"

G3/8"

G1/2"

Overall Dimensions

Bore

AM

B

D2

D5

D7

E

EE(G)

J3

J4

KK

L2

L3

L4

L5

L6

L7

L8

SW1

SW2

VD

WH

ZB

32

22

30

12

32.5

M6

45

1/8

6

5.2

M10×1.25

40

80

4

26

16

3.3

8

10

6

16

26

120

40

24

35

16

38

M6

54

1/4

8

6

M12×1.25

46

89

4

29.6

16

3.6

10

13

6

20

30

135

50

32

40

20

46.5

M8

64

1/4

10

8.5

M16×1.5

54

90

4

30

17

5.1

10

17

8

27

37

144

63

32

45

20

56.5

M8

75

3/8

12.4

10

M16×1.5

57

101

4

35.5

17

6.6

10

17

8

27

37

158

80

40

45

25

72

M10

93

3/8

12.5

8

M20×1.5

65

109

4

36

17

10.5

10

22

10

34.5

46

174

100

40

55

25

89

M10

110

1/2

11.8

10

M20×1.5

71

118

4

39

17

8

12.5

22

10

38

51

189

125

54

60

32

110

M12

134

1/2

13

8

M27×2

95

128

6

44.7

22

14

10

28

12

46

65

223


Bore

32

40

50

63

80

100

125

B

30

35

40

45

45

55

60

L15

146

165

182

194

220

240

298

VD

16

20

27

27

34.7

38.2

46

ZB

120

135

144

158

174

189

223

Other info

NO.

Designation

1

Piston Rod Nut

3

Front Cover Seal Ring

5

Front Cover

7

O-Ring

9

Piston O-Ring

11

Wear Ring

13

Piston

15

Cushion Needle

17

Hex Socket Screw


NO.

Designation

2

Piston Rod

4

Bearing

6

Buffering O-Ring

8

Pistion rod O-Ring

10

Magnet(Optional)

12

Barrel

14

Cushion Seal

16

Back Over

18

Profile Bolt


Bore

Standard Stroke

Buffer Stroke

Stroke Range

32

25 40 50 80
100 125 160
200 250 320
400 500

20

10~2000

40

50

22

63

80

32

100

125

35
