Air |
|
|
Double action |
|
|
15.3kgf/cm2(1.5Mpa) |
|
|
10.2kgf/cm2(1.0Mpa) |
|
|
0.5kgf/cm2(0.05Mpa) |
|
|
-10~+70℃ |
Working Medium
|
Bore(mm) |
20 |
25 |
32 |
40 |
|
Working Medium |
Air |
|||
|
Motion Pattern |
Double action |
|||
|
Ensured Pressure Resistance |
15.3kgf/cm2(1.5Mpa) |
|||
|
Max.pressure |
10.2kgf/cm2(1.0Mpa) |
|||
|
Min.pressure |
0.5kgf/cm2(0.05Mpa) |
|||
|
Operating Temperature Range |
-10~+70℃ |
|||
|
Operating Speed Range |
50~750mm/s |
|||
|
Buffering |
Rubber buffer(Standard),Air buffer(Optional) |
|||
|
Margin of Stroke Error(mm) |
+1.4 |
|||
|
Port size |
G1/8" |
G1/8" |
G1/8" |
G1/4" |
|
Diameter |

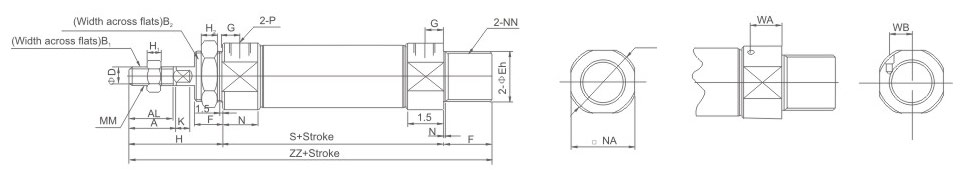

Stroke range |
A |
AL |
B1 |
B2 |
D |
E |
F |
G |
H |
H1 |
H2 |
I |
K |
MM |
N |
NA |
NN |
P |
S |
ZZ |
WA |
WB |
|
20 |
~300 |
18 |
15.5 |
13 |
26 |
8 |
20 0 |
13 |
8 |
41 |
5 |
8 |
28 |
5 |
M8×1.25 |
15 |
24 |
M20×1.5 |
1/8 |
62 |
116 |
11.5 |
8.5 |
|
25 |
~300 |
22 |
19.5 |
17 |
32 |
10 |
26 0 |
13 |
8 |
45 |
6 |
8 |
33.5 |
5.5 |
M10×1.25 |
15 |
30 |
M26×1.5 |
1/8 |
62 |
120 |
11.5 |
10 |
|
32 |
~300 |
22 |
19.5 |
17 |
32 |
12 |
26 0 |
13 |
8 |
45 |
6 |
8 |
37.5 |
5.5 |
M10×1.25 |
15 |
34.5 |
M26×1.5 |
1/8 |
64 |
122 |
11.5 |
11.5 |
|
40 |
~300 |
24 |
21 |
22 |
41 |
14 |
32 0 |
16 |
11 |
50 |
6 |
10 |
46.5 |
7 |
M14×1.5 |
21.5 |
42.5 |
M32×2 |
1/4 |
88 |
154 |
14 |
15 |
|
NO. |
Designation |
|
1 |
Front Cover |
|
2
|
Back Cover |
|
3
|
Barrel |
|
4
|
Piston |
|
5
|
Piston rod |
|
6
|
Oiled Bearing |
|
7
|
Front Cover Seal Ring |
|
8 |
Anti-crash cushion |
|
9
|
Piston Seal
|
|
10
|
Wear Ring
|
