Bore(mm)

6

10

16

Working Medium

Air

Motion Pattern

Double action/Single Action Extrusion type/Single Action Drawing-in Type

Ensured Pressure Resistance

1.05Mpa(10.5kgf/cm2)

Max.pressure

0.7Mpa(7.1kgf/cm2)

Min.pressure

0.25Mpa(2.5kgf/cm2)

0.15Mpa(1.5kgf/cm2)

Operating Temperature Range

-10~+70℃

Operating Speed Range

50~750mm/s

Buffering

Both side Rubber buffer(Standard)

Margin of Stroke Error(mm)

+1.0
0 mm

Port size

M5×0.8

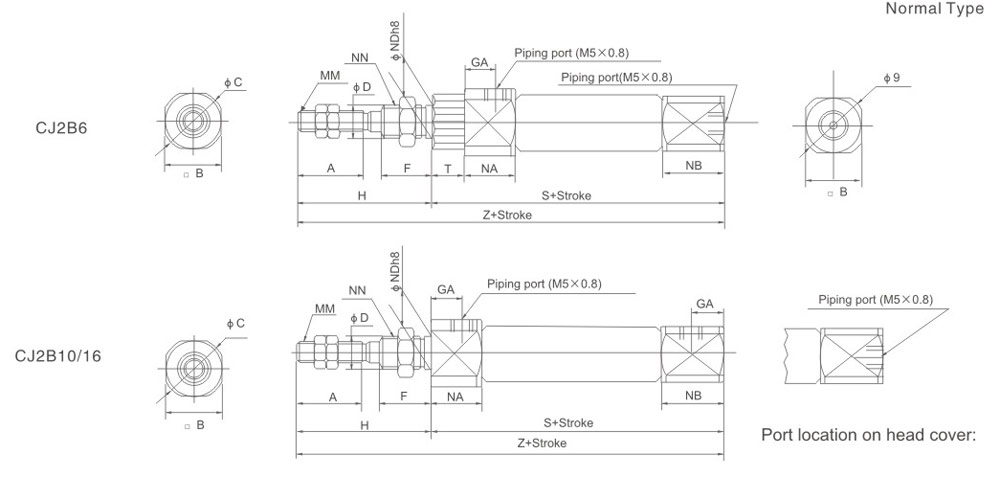

Bore(mm)

A

B

C

D

F

GA

GB

H

MM

NA

NB

NDh8

NN

S

T

Z

6

15

12

14

3

8

14.5

-

28

M3×0.5

16

7

6

M6×1.0

49

3

77

10

15

12

14

4

8

8

5

28

M4×0.7

12.5

9.5

8

M8×1.0

46

-

74

16

15

18

20

5

8

8

5

28

M5×0.8

12.5

9.5

10

M10×1.0

47

-

75

Bore
(mm)

A

B

C

D

F

GB

H

MM

NA

NB

NB b8

*S

5~ 15

16~ 30

31~ 45

46 ~ 60

61~ 75

76~ 100

101~ 125

126~ 150

6

15

8

19

3

8

-

28

M3×0.5

3

7

6 0

34.5 (39.5)

43.5 (48.5)

47.5 (52.5)

61.5 (66.5)

-

-

-

-

10

15

12

14

4

8

5

28

M4×0.7

5.5

9.5

8 0

45.5

53

65

77

-

-

-

-

16

15

18

20

5

8

5

28

M5×0.8

5.5

9.5

10 0

45.5

54

66

78

84

108

126

138

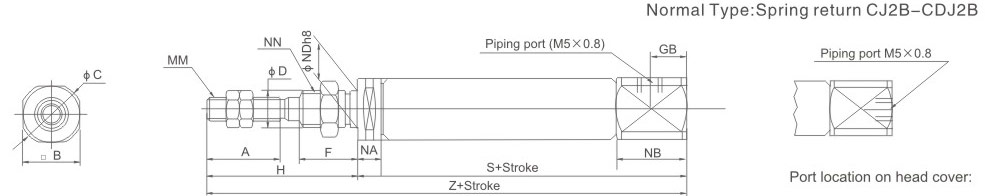

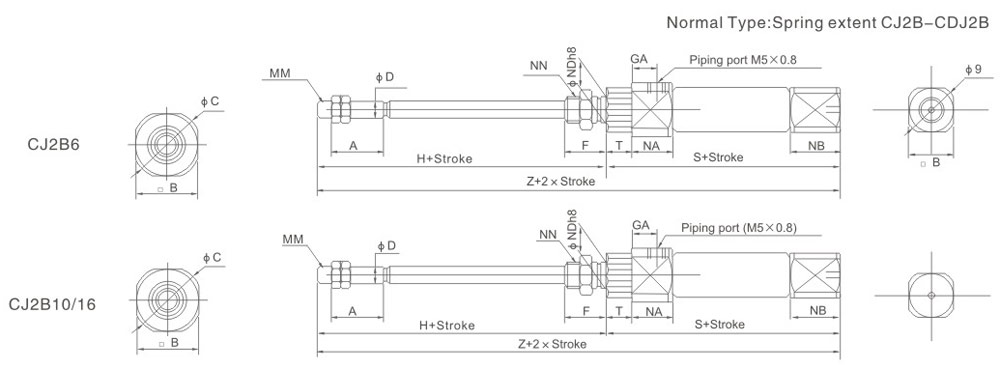

Bore
(mm)

*S

*Z

5~ 15

16~ 30

31~ 45

46 ~ 60

61~ 75

76~ 100

101~ 125

126~ 150

5~ 15

16~ 30

31~ 45

46 ~ 60

61~ 75

76~ 100

101~ 125

126~ 150

6

46.5 (51.5)

55.5 (60.5)

59.5 (60.5)

73.5 (78.5)

-

-

-

-

74.5 (79.5)

83.5 (88.5)

87.5 (92.5)

101.5 (106.5)

-

-

-

-

10

48.5

56

68

80

-

-

-

-

76.5

84

96

108

-

-

-

-

16

48.5

57

69

81

87

111

129

141

76.5

85

97

109

115

139

157

169
