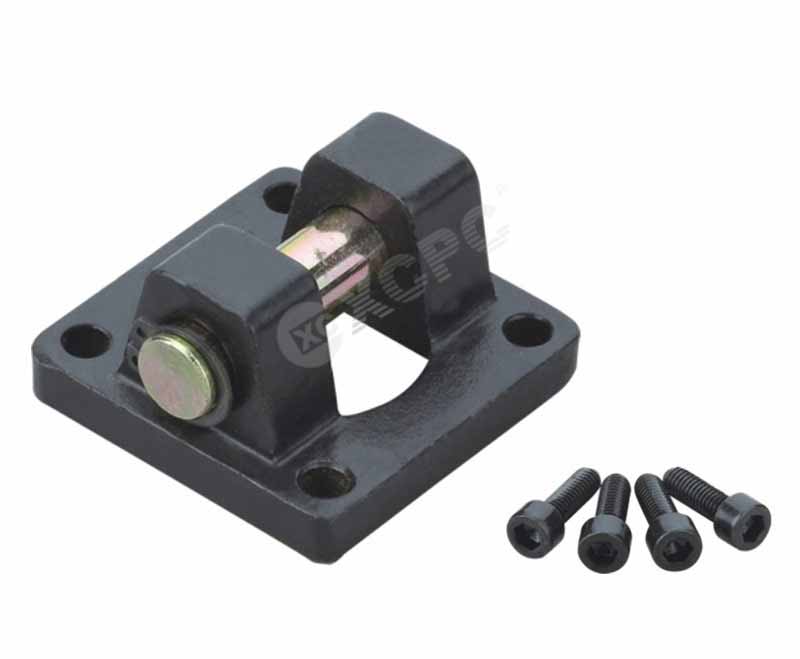

CB+Pin Type Double Earring
SERIES: Standard Cylinder Accessories
CB+Pin Type Double Earring
FEATURES
Note: CA and CB From 32-100,we can supply two kinds of materials products:1.Iron material 2. Aluminium material.When pla cing order, please indicate product material. From 125-200 are all iron.
SUB-SERIES

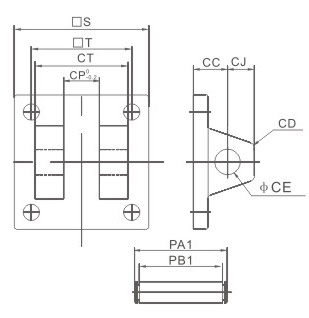

Overall Dimensions
| Symbol/Bore | 32 | 40 | 50 | 63 | 80 | 100 | 125 | 160 | 200 |
| CC | 19 | 19 | 19 | 19 | 32 | 32 | 50 | 55 | 60 |
| CD | 5 | 5 | 3 | 2 | 8 | 8 | 25 | 30 | 30 |
| CE | 12 | 14 | 14 | 14 | 20 | 20 | 25 | 30 | 30 |
| CJ | 13 | 13 | 15 | 15 | 21 | 21 | 25 | 30 | 30 |
| CP | 16 | 20.5 | 20.3 | 20.3 | 32.3 | 32.3 | 70 | 90 | 90 |
| CT | 32 | 44 | 52 | 52 | 64 | 64 | 120 | 160 | 160 |
| PAI | 41 | 51.8 | 60.3 | 60.3 | 73.8 | 73.8 | 130 | 170 | 170 |
| PBI | 33.5 | 45.8 | 54 | 54 | 65.5 | 65.5 | 121.5 | 161.5 | 161.5 |
| S | 48 | 50 | 62 | 75 | 94 | 94 | 140 | 180 | 220 |
| T | 33 | 37 | 47 | 56 | 70 | 70 | 110 | 140 | 175 |
