AC,BC (Three Elements)
SERIES: AC,BC Series F.R.L

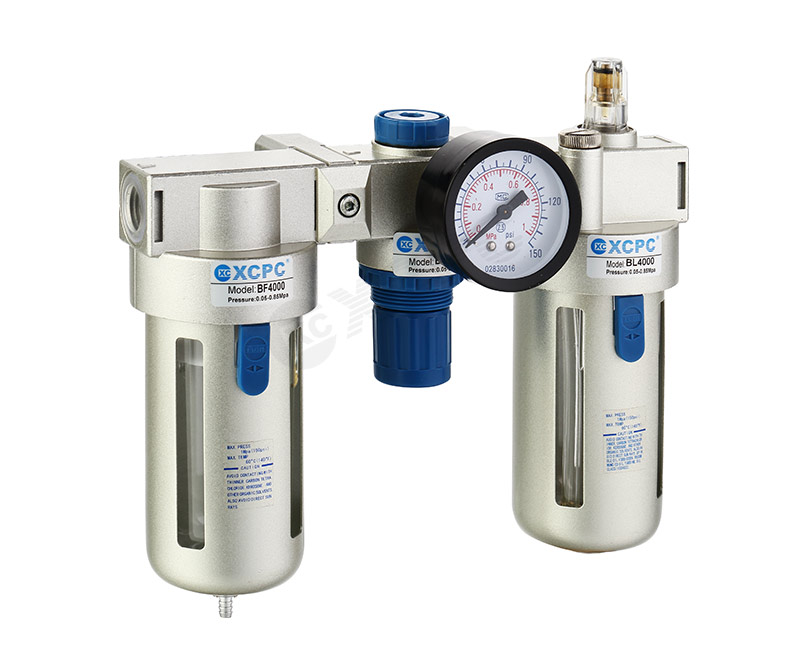

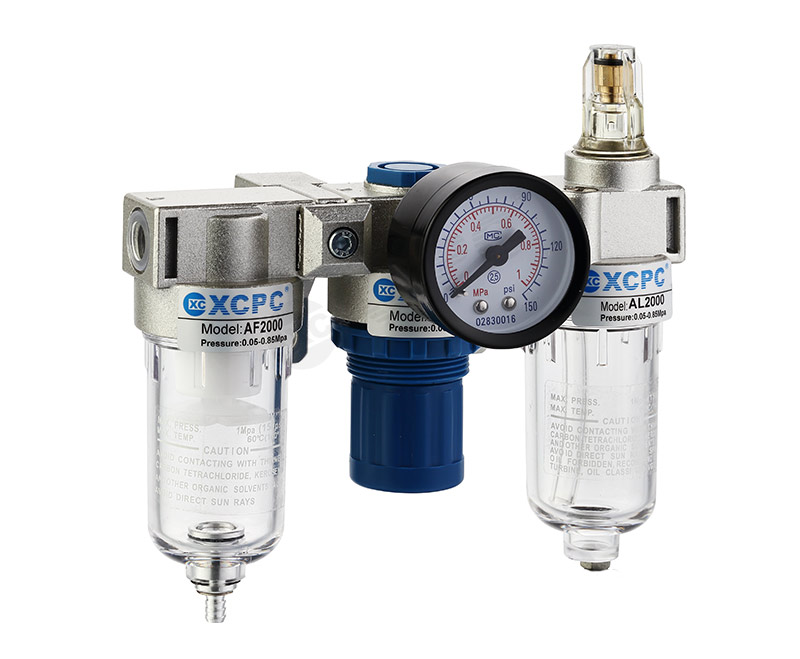

AC,BC (Three Elements)
FEATURES
 Operating Fluid
|
Air
|
|
Fitierlng Element Reughness
|
40µ
|
|
Range of Adlustable Pressure
|
0.05~0.85MPa
|
|
Max Adlustable Pressure
|
0.95MPa
|
|
Ensu red Pressure Resistance
|
1.5MPa
|
|
Operating Temperature Range
|
5-60℃
|
SUB-SERIES
Ordering Code
Specification
| Model |
AC1500 |
AC2000 |
BC2000 |
BC3000 | BC4000 | |
| Operating Fluid | Air | |||||
| Port Size | G1/8" | G1/4" | G1/4" | G3/8" | G1/2" | |
| Fitierlng Element Reughness | 40µ | |||||
| Range of Adlustable Pressure | 0.05~0.85MPa | |||||
| Max Adlustable Pressure | 0.95MPa | |||||
| Ensu red Pressure Resistance | 1.5MPa | |||||
| Operating Temperature Range | 5-60℃ | |||||
| Capacitv of Filter Cup | 15 cc | 60 cc | ||||
| Capacity of Oil Feed Cup | 25 cc | 90 cc | ||||
| Suggested Lube | lSO VG 32 or Same Grade Oil | |||||
| Weight | 0.7KG | 0.9KG | ||||
| Material | Body | Aluminum Die-casting Forming | ||||
| Container Cup | PE | |||||
| Protedive Cup Cover | - | Iron | ||||
|
Composing Elementsl |

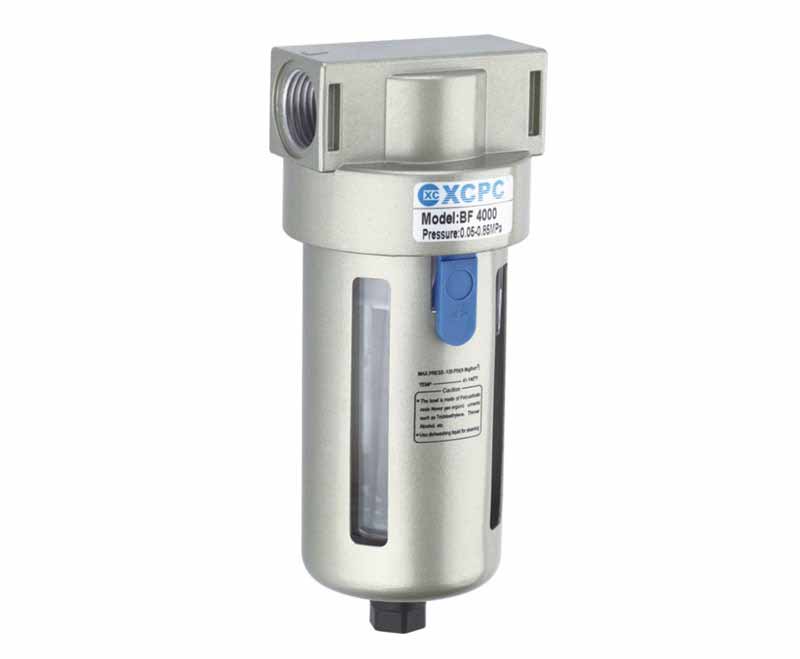

Fitier | AF1500 | AF2000 | BF2000 | BF3000 | BF4000 |

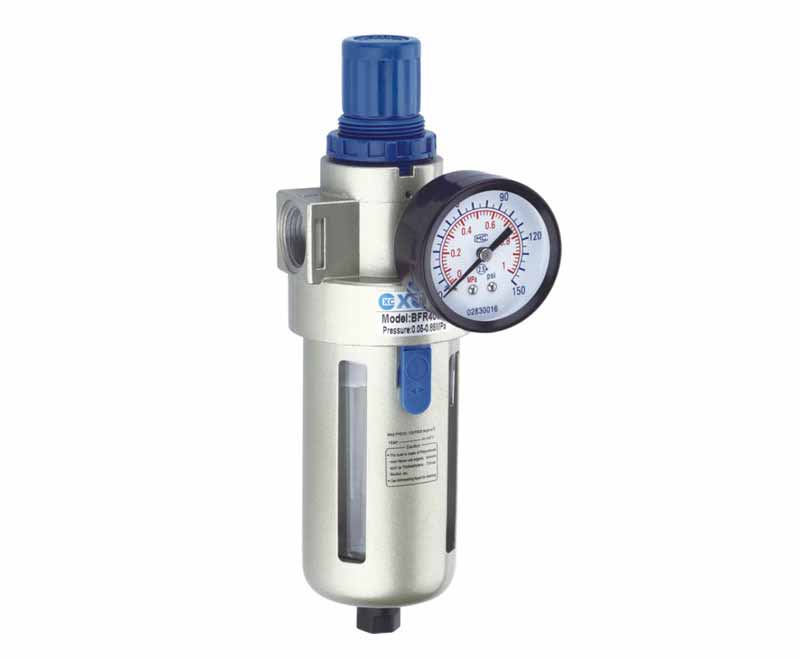

| Regulator | AR1500 | AR2000 | BR2000 | BR3000 | BR4000 | |

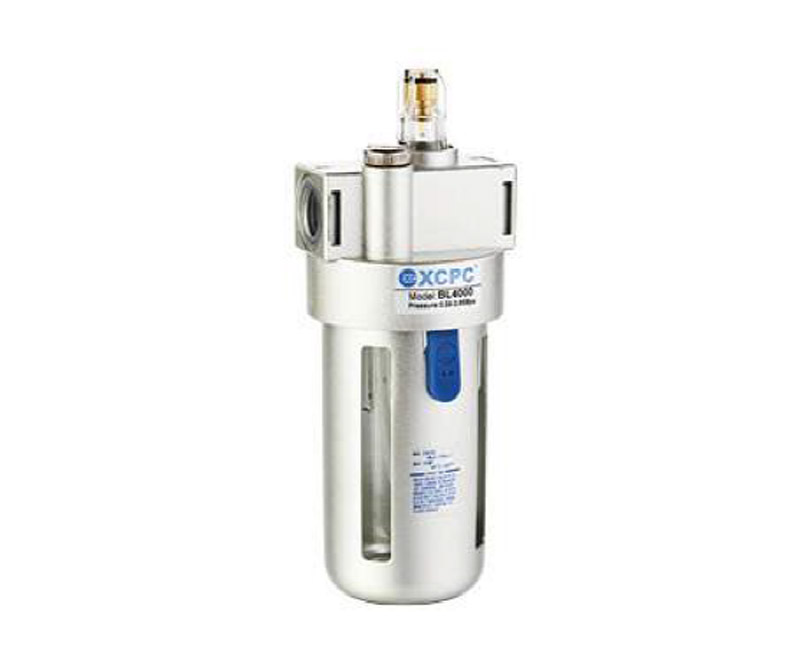

| Lubricator | AL1500 | AL2000 | BL2000 | BL3000 | BL4000 | |

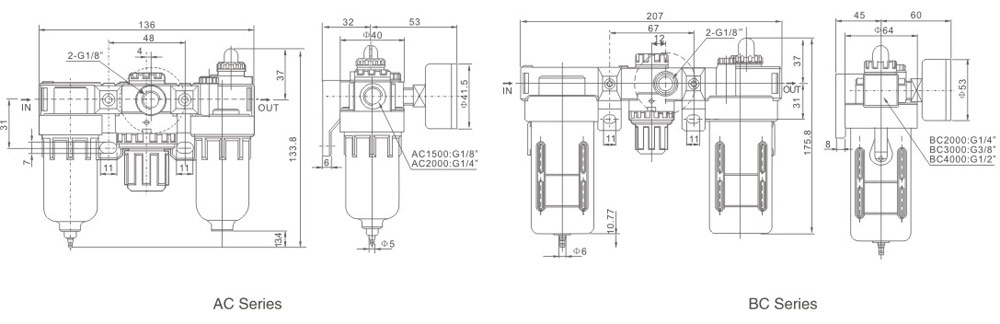

Overall Dimensions
