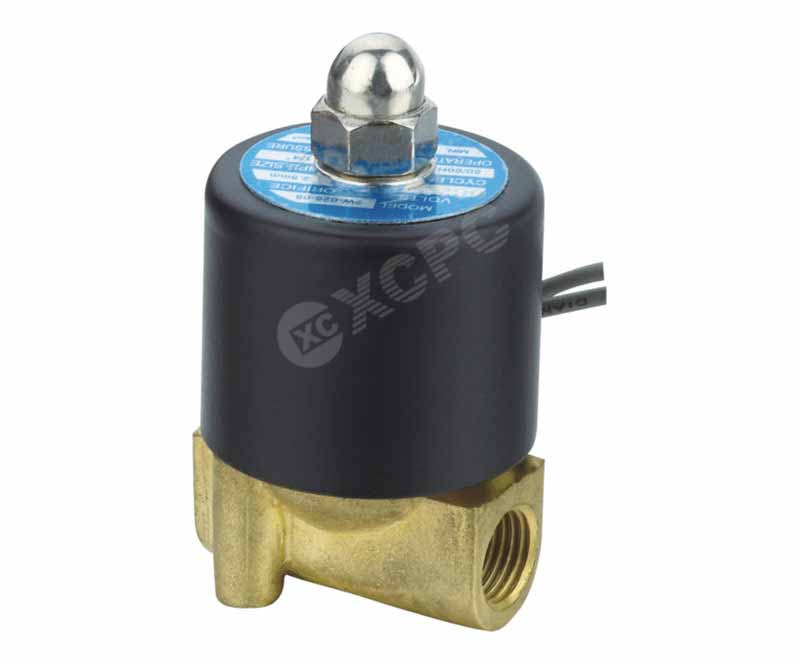

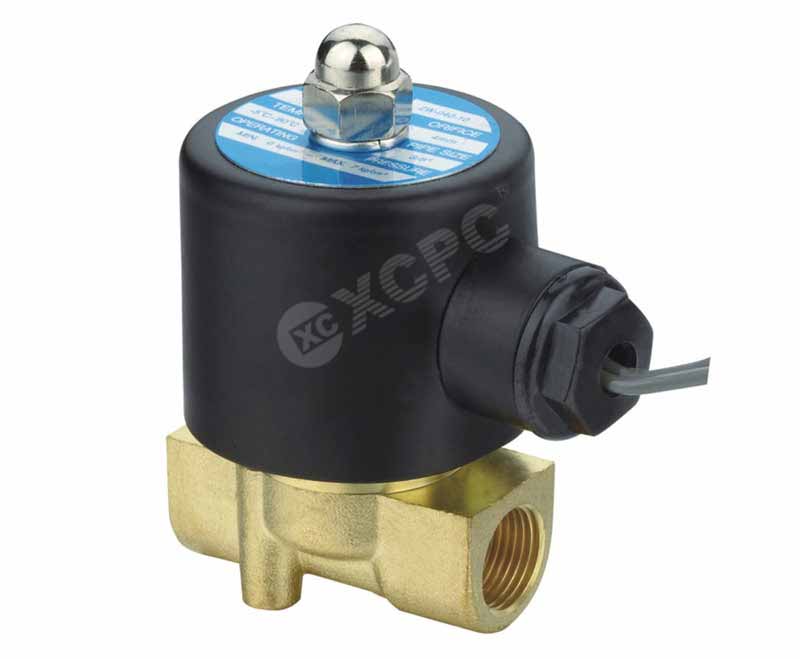

2W(UD) Series 2/2 Way Solenoid Valve(Small Aperture)
SERIES: 2W(UD) Series 2/2 Way Solenoid Valve(Small Apertur
2W(UD) Series 2/2 Way Solenoid Valve(Small Aperture)
FEATURES
 Working Medium
|
Air,Water,Oil,Gas
|
|
Motion Pattern
|
Direct Drive Type
|
|
Type
|
Normal Close Type
|
|
Operation Fluid Viscosity
|
20 CST(Below)
|
|
Operating Temperature ℃
|
-5 ~ 80℃
|
|
Voltage Range
|
±10%
|

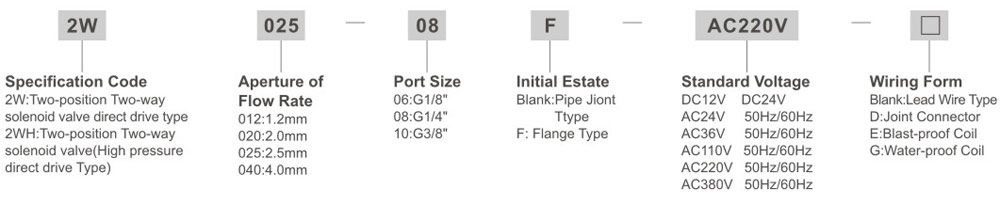

Ordering Code
Specification
|
Model
|
2W025-06
|
2W025-08
|
2W040-10
|
2WH012-06
|
2WH012-08
|
2WH020-10
|
|
Working Medium
|
Air,Water,Oil,Gas
|
|||||
|
Motion Pattern
|
Direct Drive Type
|
|||||
|
Type
|
Normal Close Type
|
|||||
|
Aperture of Flow Rate(mm)
|
2.5
|
4
|
1.2
|
2
|
||
|
CV Value
|
0.23
|
0.60
|
0.05
|
0.15
|
||
|
Joint Pipe Bore
|
1/8″
|
1/4″
|
3/8″
|
1/8″
|
1/4″
|
3/8″
|
|
Operation Fluid Viscosity
|
20 CST(Below)
|
|||||
|
Working-pressure MPa
|
Air,Water,Oil,gas: 0~0.7
|
Air,Water,Oil: 0~2.0
|
||||
|
Max. Pressure Resistance MPa
|
1.0
|
3.5
|
||||
|
Operating Temperature ℃
|
-5 ~ 80℃
|
|||||
|
Voltage Range
|
±10%
|
|||||
|
Material of Body
|
Brass
|
|||||
|
Material of Oil Seal
|
NBR,EPDM or VITON
|
|||||

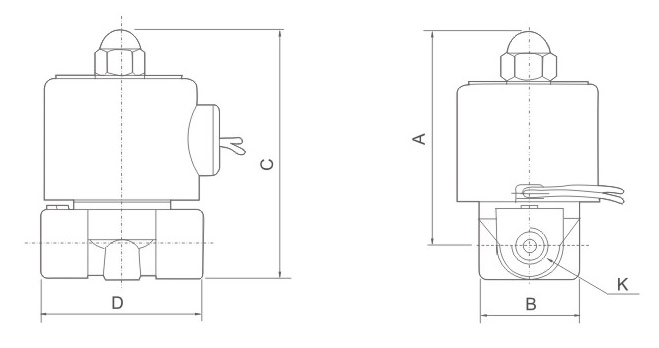

Overall Dimensions
|
Symbol/Model
|
A
|
B
|
C
|
D
|
K(PT)
|
|
2W025-06
|
66
|
30.3
|
75
|
41.5
|
1/8″
|
|
2W025-08
|
66
|
30.3
|
75
|
41.5
|
1/4″
|
|
2W040-10
|
74
|
32.3
|
85.5
|
53
|
3/8″
|
|
2WH012-06
|
66
|
30.3
|
75
|
40.5
|
1/8″
|
|
2WH012-08
|
66
|
30.3
|
75
|
40.5
|
1/4″
|
|
2WH020-10
|
74
|
32.3
|
85.5
|
53
|
3/8″
|

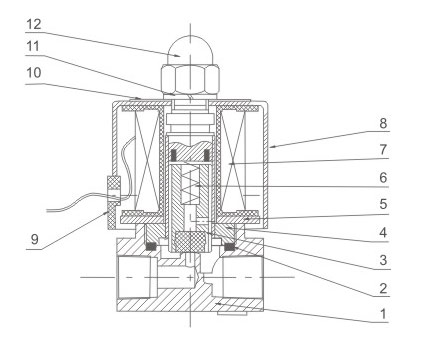

Other info
|
NO
|
|
|
1
|
Body Of Valve
|
|
2
|
O-ring
|
|
3
|
Assembly Of Iron Core
|
|
4
|
Assembly Of Iron Core
|
|
5
|
Magnetic Plate
|
|
6
|
Spring
|
|
7
|
Assembly Of Coil
|
|
8
|
Iron Cover
|
|
9
|
Cord-locks
|
|
10
|
Name Plate
|
|
11
|
Gasket
|
|
12
|
Head Cover Nut
|
